Multiple Connection Methods for Poseidon M20 Pro Soundbar🔥🔥🔥🔥🔥

There are three ways to connect:

Recommend connection: OPT＞AUX＞Bluetooth

Note: You cannot switch the soundbar’s input mode while plugging in the device if the white light is displayed. Please press the Power button to turn on the soundbar and wait until the green light appears on the soundbar display before switching the mode.

1. Optical Connection:

1. Find a digital optical cable (included). Remove the protective caps from both ends of the cable.

2. Insert one end of the optical cable into your TV’s Optical Out port.

3. Align the other end of the cable with the OPTICAL IN port on the back of the soundbar.

4. Check whether the TV setting path is correct.
Normally as below: Settings-Sound Output-Optical
and Sound -Expert Settings-Digital Audio Output -PCM

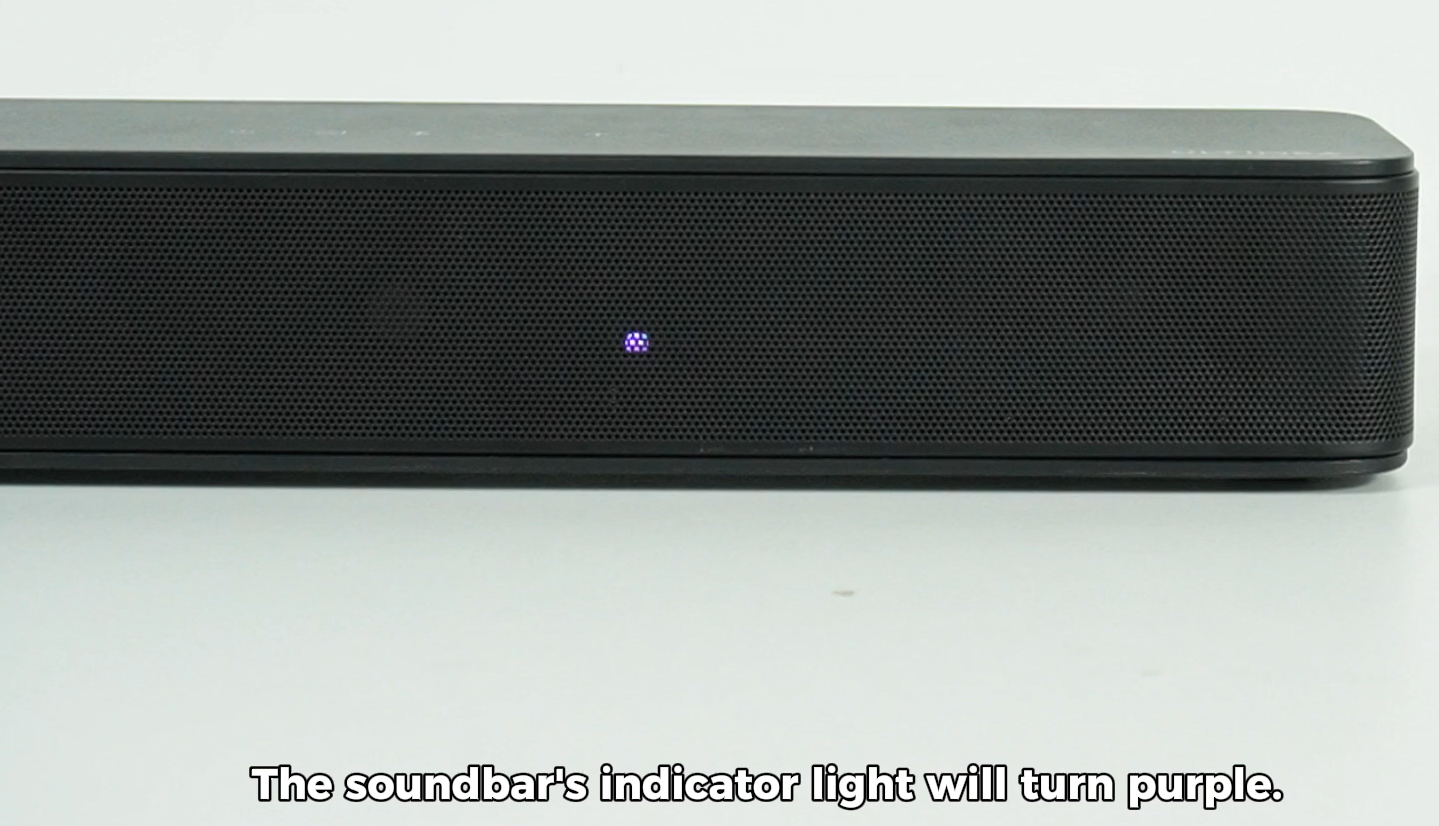

5. Then press the OPT button on the remote and check that the LED indicator on the soundbar matches the purple color shown.

Note: Check if the optical cable's other end has a red light on after connecting the TV port

If there is no red light, we suggest that to try a new optical cable. (the special material inside the optic cable, please do not bend the optic)

2. AUX Connection-3.5mm-3.5mm Audio cable connection:

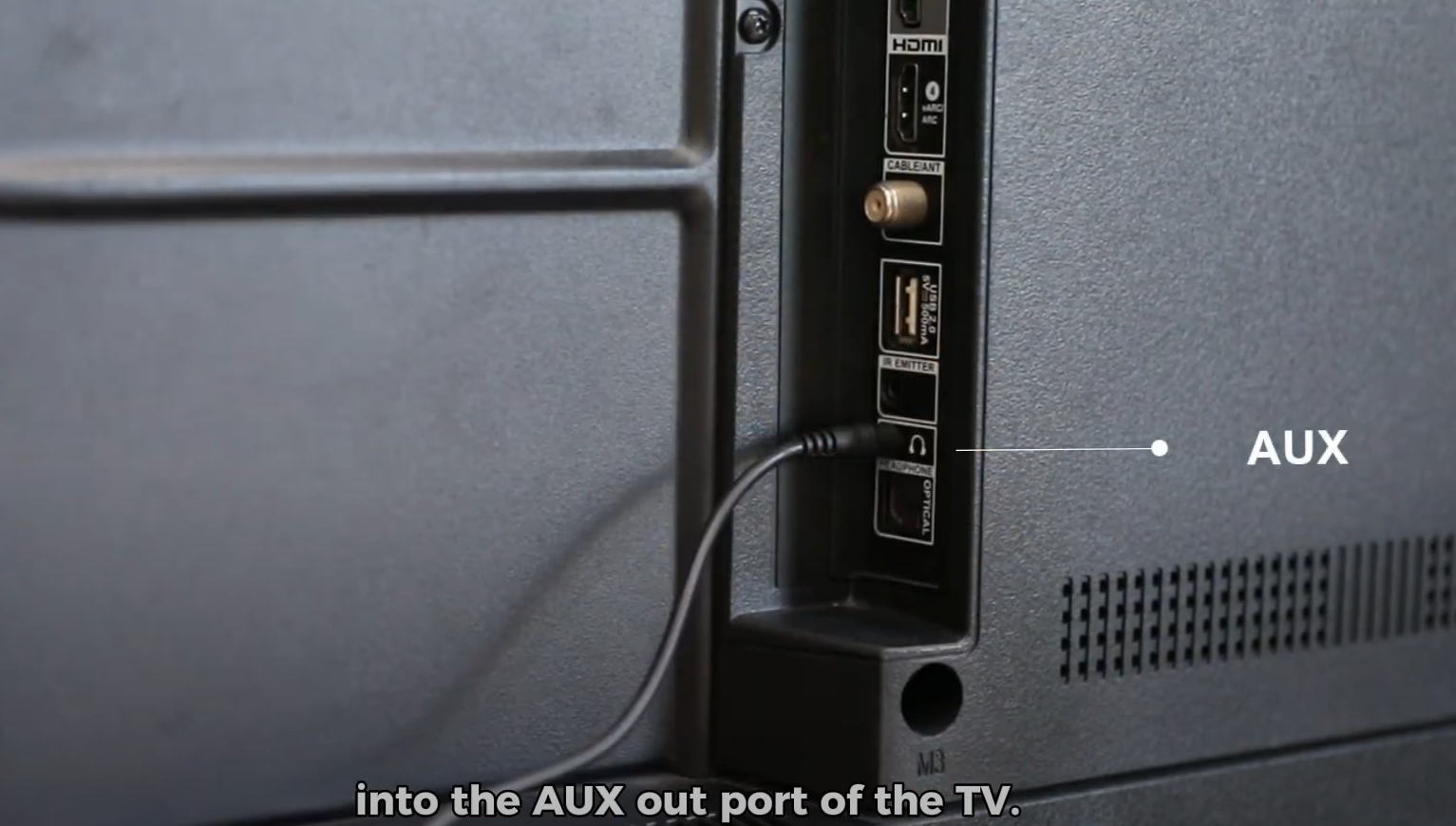

1. Connect an AUX cable from the Audio Out port on the TV to the AUX port on the soundbar.
A. The TV port must be Audio Out, not Audio In.
B. Make sure the AUX cable is a 3.5 mm cable (included).

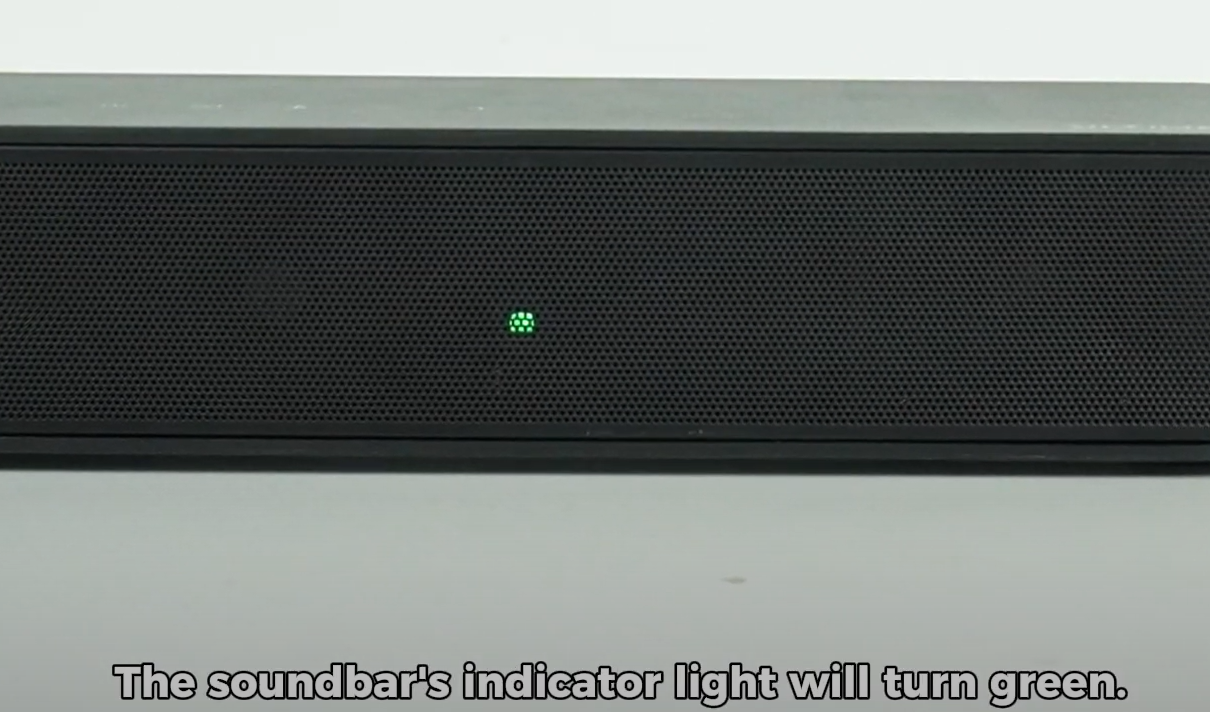

2. Setting to the TV output path is AUDIO/SOUND output and the Soundbar input is AUX mode. Please check that the LED indicator on the soundbar matches the green color shown.

Note: If you want to switch to another input mode, please remember to unplug the AUX cable first.

3. Bluetooth connection:

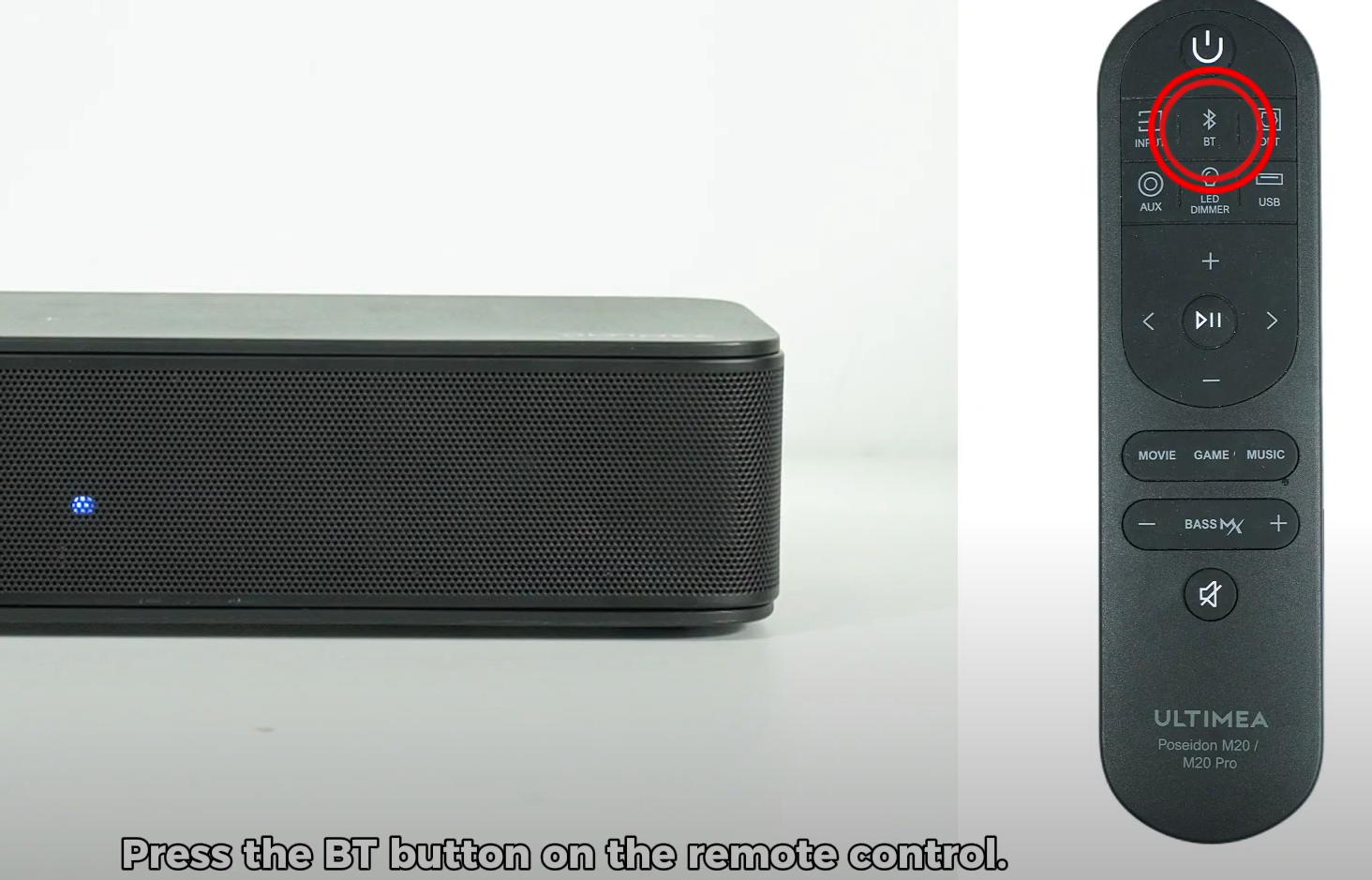

1. Press the "BT" button on the remote control and check that the LED indicator on the soundbar matches the Blue color shown.

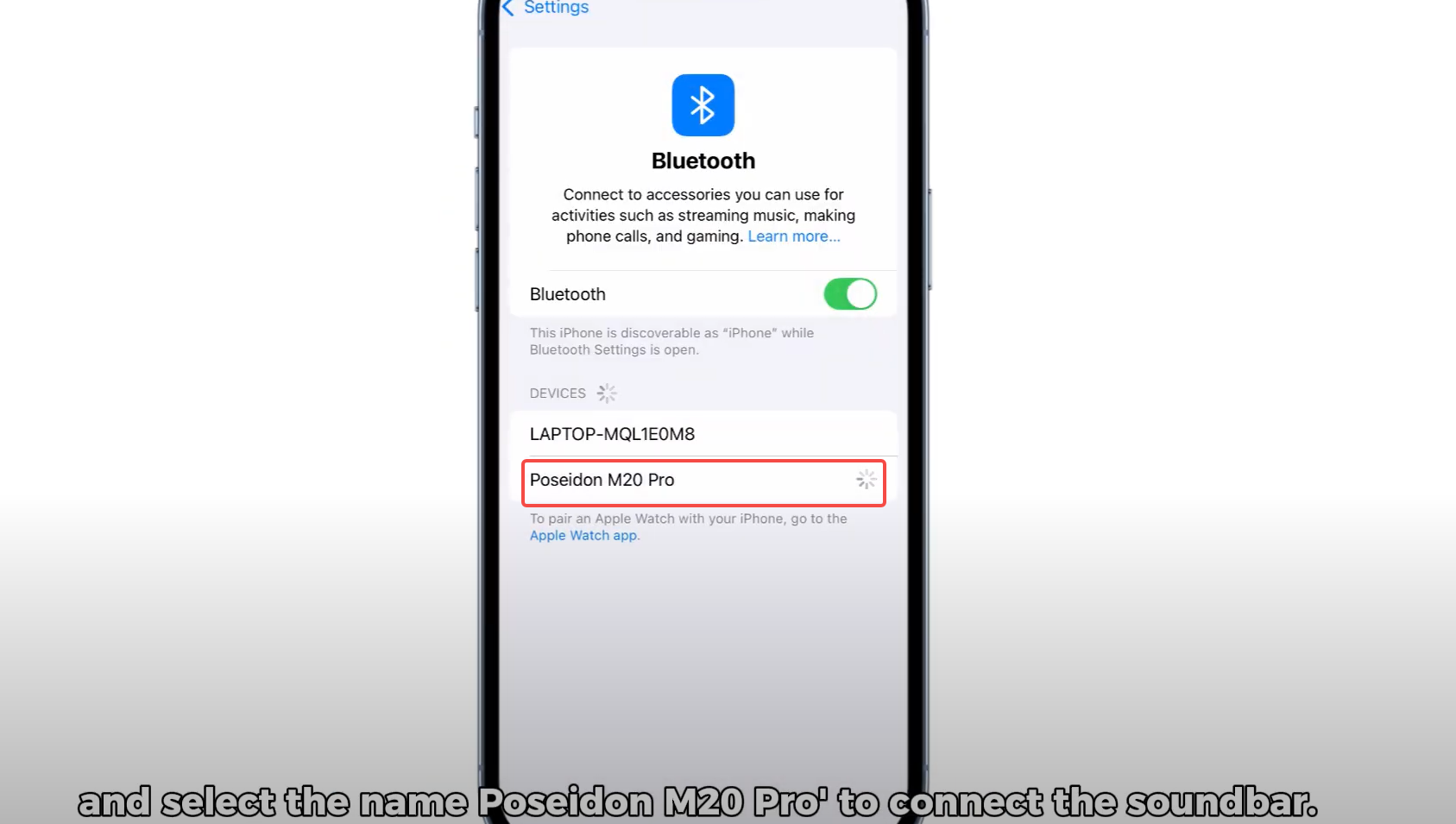

2. Then turn on your phone's Bluetooth search and connect with the device Poseidon M20 Pro.

Other instructions:

1. A flashing blue light indicates the soundbar is waiting for pairing.

2. A solid (non-blinking) blue light indicates that the Bluetooth connection has been successfully established.

3. Press and hold the BT button for 3 seconds to disconnect the currently connected device.

Bluetooth connection problem：
1. Bluetooth version higher than 4.0; otherwise, the Bluetooth signal may not be found.

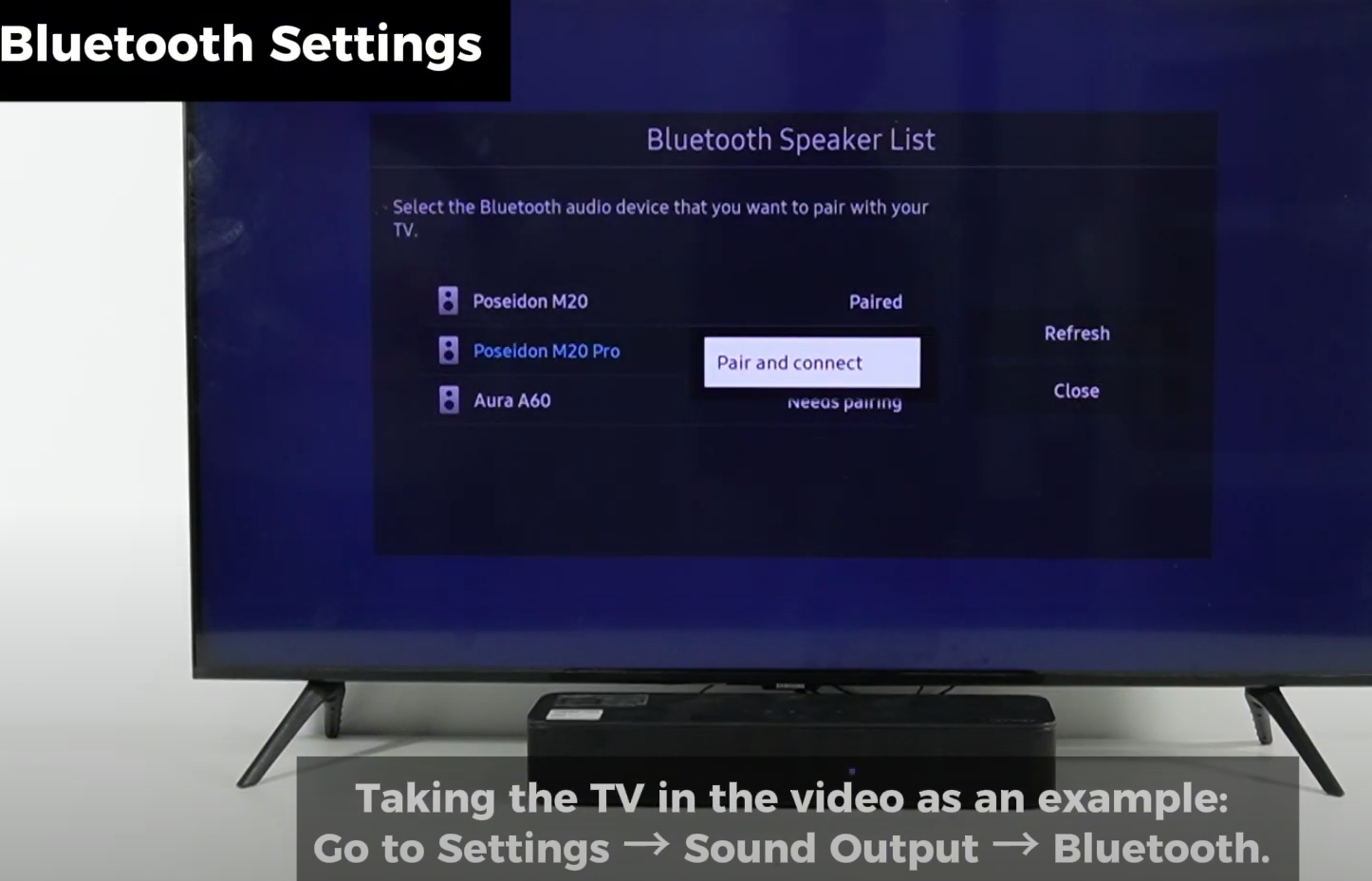

To ensure connection stability and compatibility, I recommend connecting your phone via Bluetooth instead of your TV.
2. The distance between Bluetooth devices should ideally be within 5m of each other
3. If there is no connection or Bluetooth lag problem, turn off and re-open the Bluetooth device, if still can not solve the problem, please restore the factory settings
