How to Position the Skywave X100 Dual for a better experience?

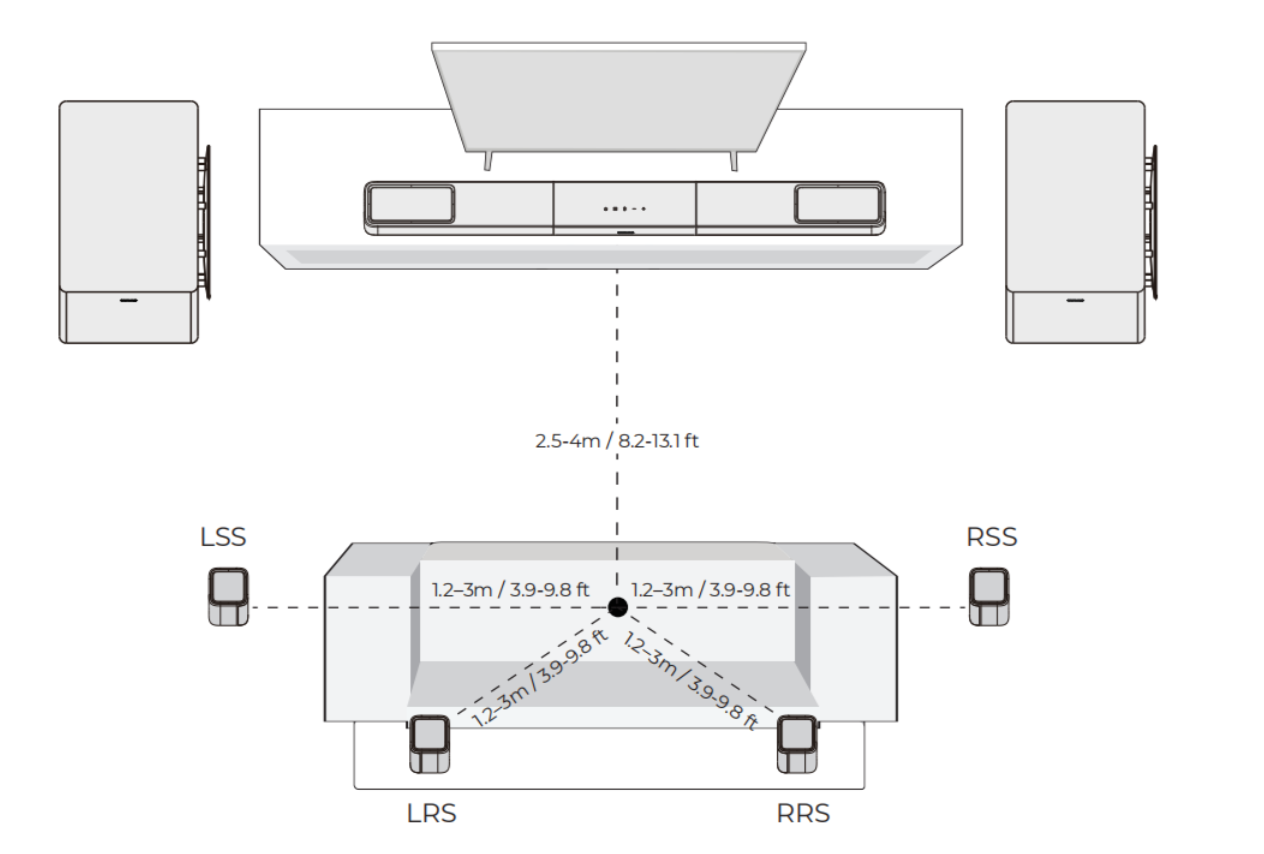

General Speaker Placement Guidelines

Directivity:
For Dolby Atmos and DTS:X systems, all ear-level speakers (front, center, and surround) should be aimed toward the main listening position.

Up-firing Channels:
The optimal ceiling height for upward-firing modules is 2.2–2.7 meters. If the ceiling is higher (e.g., 2.95 meters), you can compensate by slightly increasing the height channel level via the app.

Center Channel:
Ideally, the center speaker should be positioned at ear level. The included wall-mount brackets allow installation flexibility; if upward tilt is required, it is recommended to keep the angle within 5 degrees.

Subwoofer Placement and Settings

Placement Position:
It is recommended to place the subwoofer 20–40 cm away from the wall. For dual subwoofers, keep a distance of approximately 1.55–3 meters between them to achieve more even bass distribution.

App Adjustments:
Bass can be finely tuned from -6 to +6 dB via the app, and subwoofer phase (0°/180°) can be switched to better match room acoustics.

Small Room Tip:
If the room is smaller than 30 m² and the dual subwoofers feel too powerful, you may temporarily disable one subwoofer in the app or reduce the bass level appropriately.


If you need further assistance, please contact support@ultimea.com, and we will service you ASAP!
