Multiple Connection Methods for Poseidon M60 Boom Soundbar🔥🔥🔥🔥🔥

There are three ways to connect:

Recommend connection: HDMI eARC＞OPT＞Bluetooth

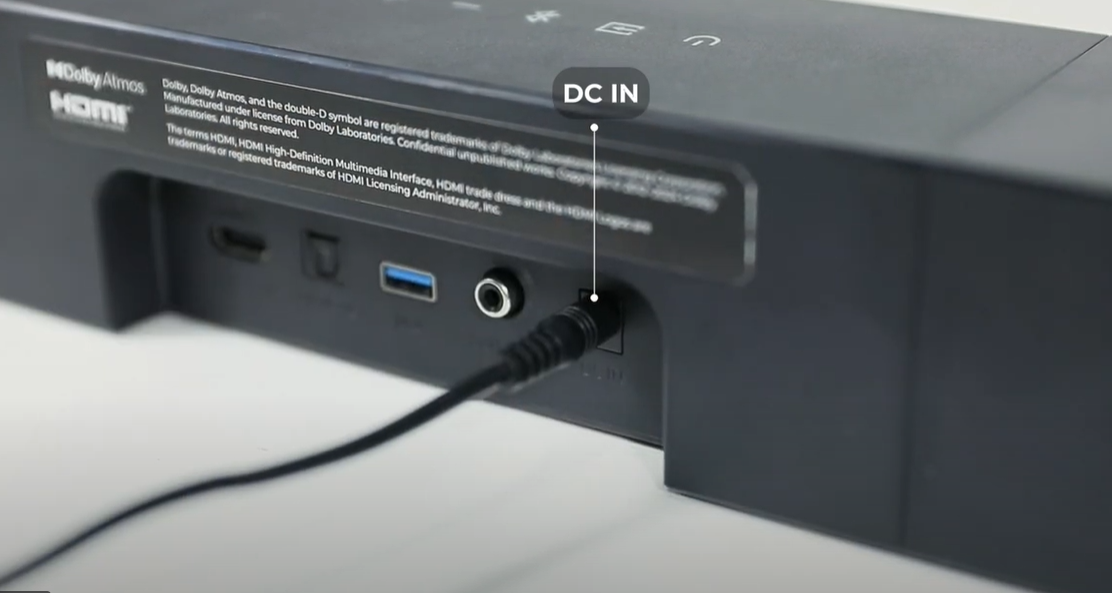

Note: You can't switch the output mode of the soundbar when plugging in the device. Please press the “Power” button to turn on the soundbar and wait until "----" appears on the screen of the soundbar before switching the mode.

Ⅰ. HDMI eARC connection:

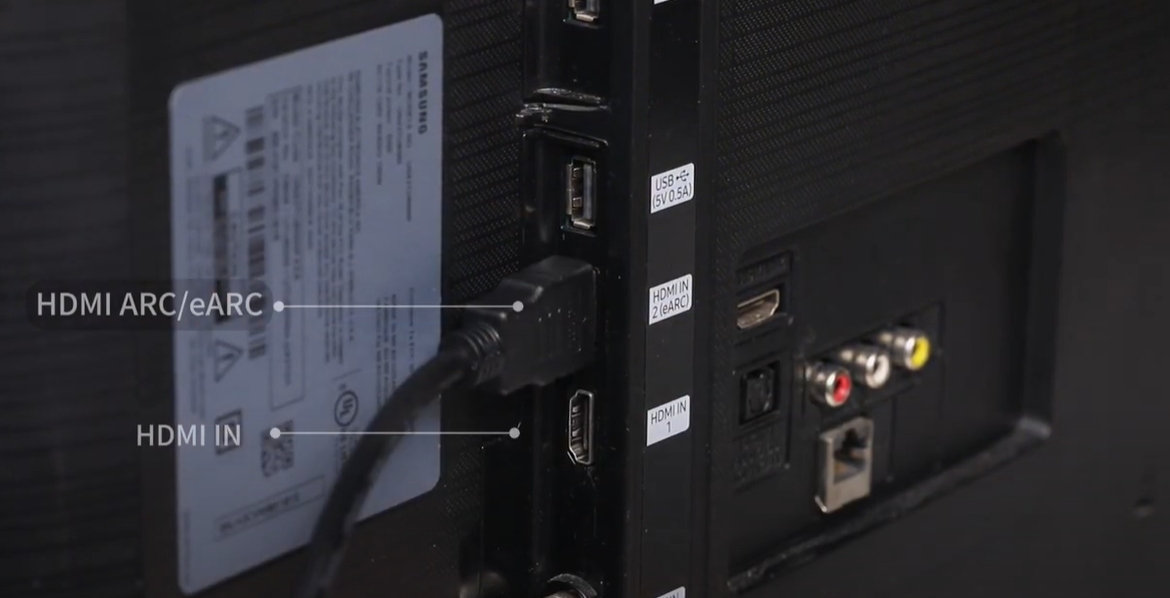

1. Check if the TV and soundbar are connected to the port that is marked "ARC" or"eARC" ("HDMI IN” does not support this).

2. Connect one end of the HDMI cable to the HDMI (ARC/eARC) port on your TV.

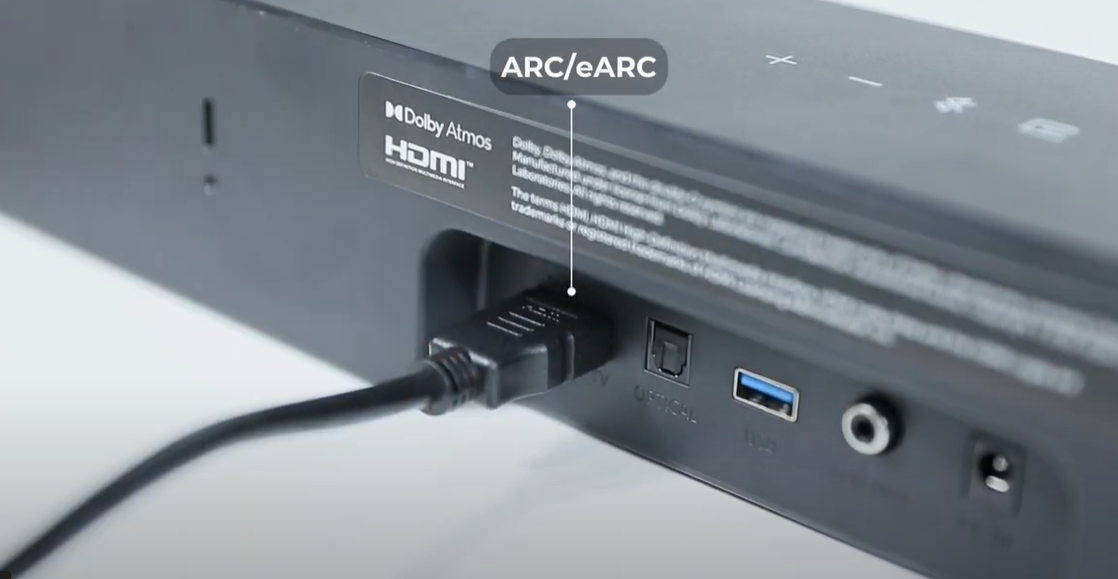

3. Connect the other end to the HDMI (eARC) port on your soundbar.

4. Check whether the TV setting path is correct.

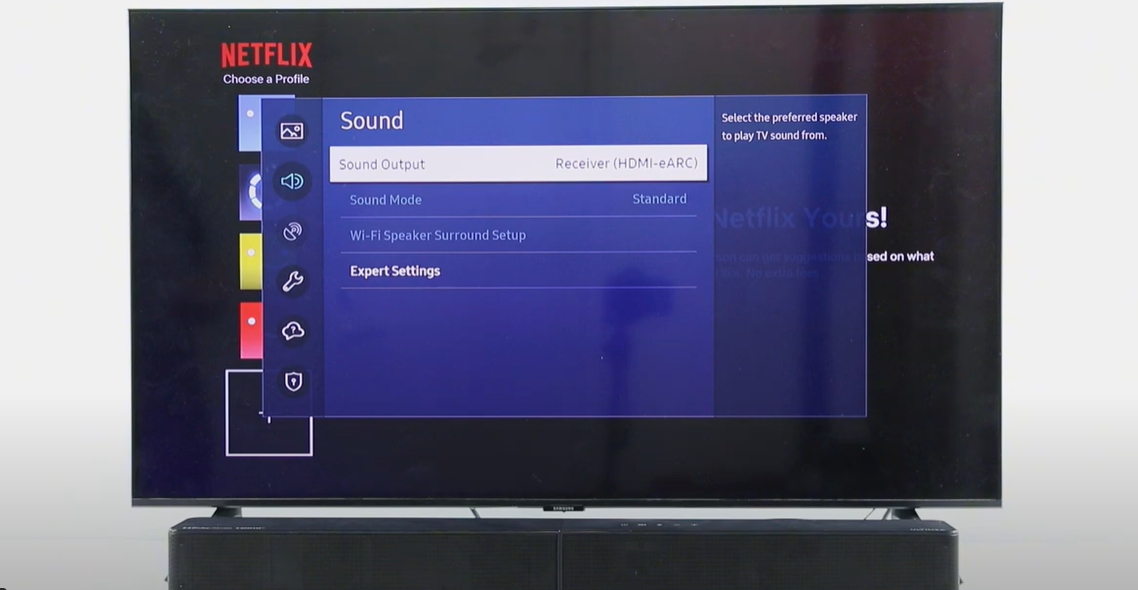

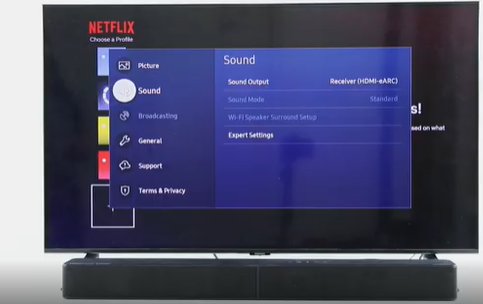

Normally as below: Settings-Sound Output-Receiver HDMI (eARC)
and Sound -Expert Settings-Digital Audio Output -Auto/Pass Through

1)For general audio output, select "Auto" (Preference) to allow the TV to automatically determine the best audio format for your content.
2) If you're dealing with Atmos audio content (such as Dolby Atmos), choose the "Passthrough" option.
3) The Dolby Atmos is ON.

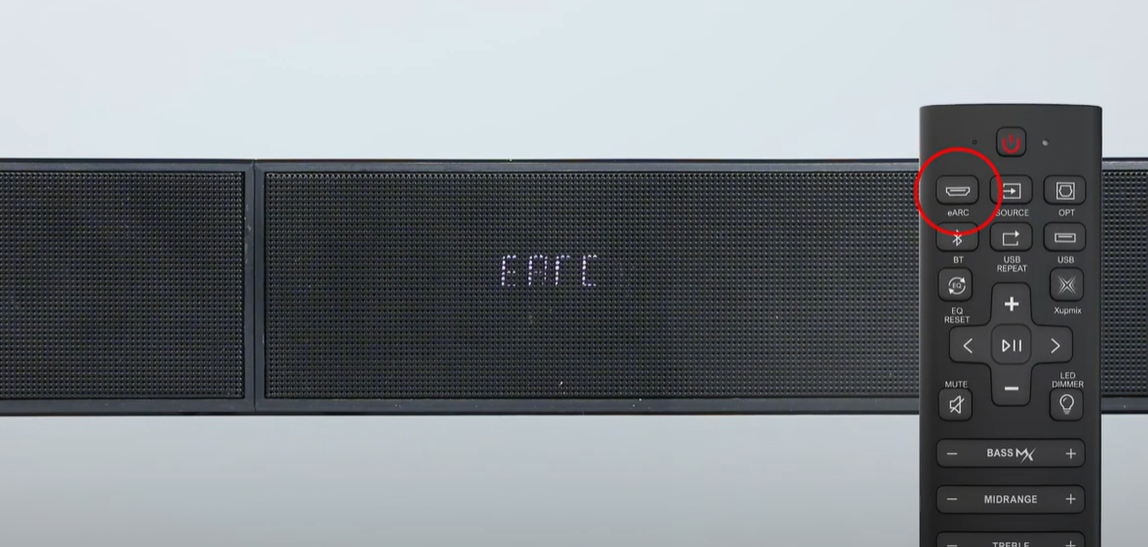

5. Check if the Soundbar switches to eARC mode.

6. Check whether the cable is not connected wrongly or loosely after completion.

Note: If the connection and settings are correct, but there is no sound, please re-plug the HDMI cable or replace the HDMI cable.

Ⅱ. Optical Connection:

1. Find a digital optical cable (not included in the package). Remove the protective caps from both ends of the cable.

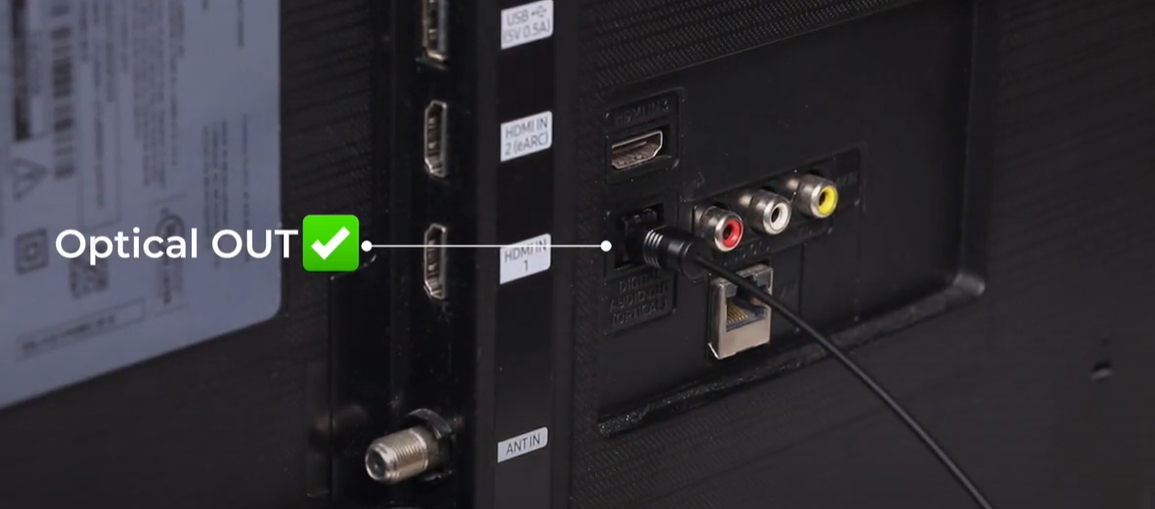

2. Insert one end of the optical cable into your TV’s Optical Out port.

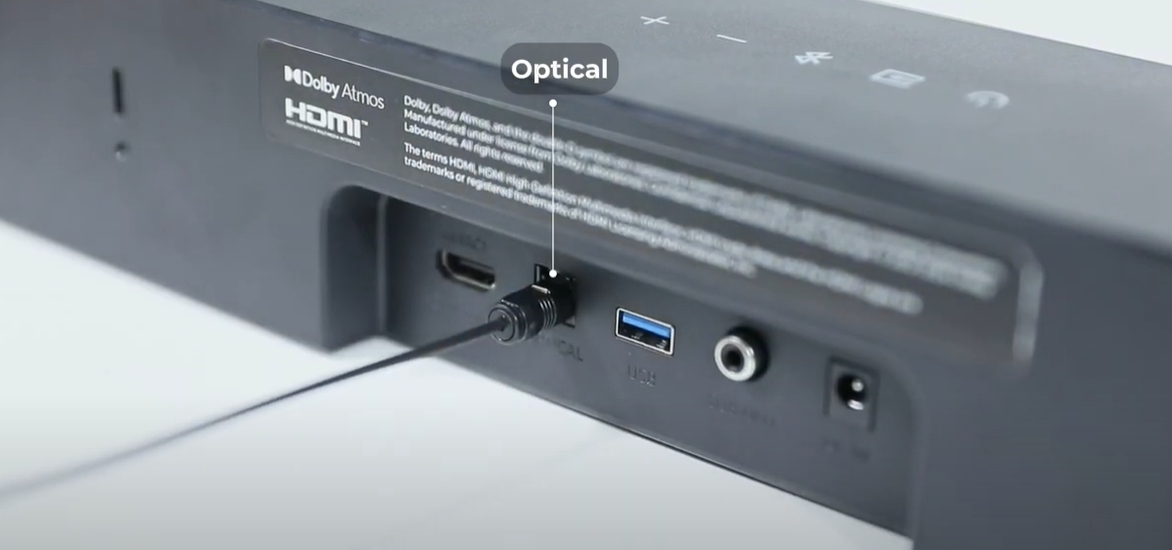

3. Align the other end of the cable with the OPTICAL IN port on the back of the soundbar.

4. Check whether the TV setting path is correct.

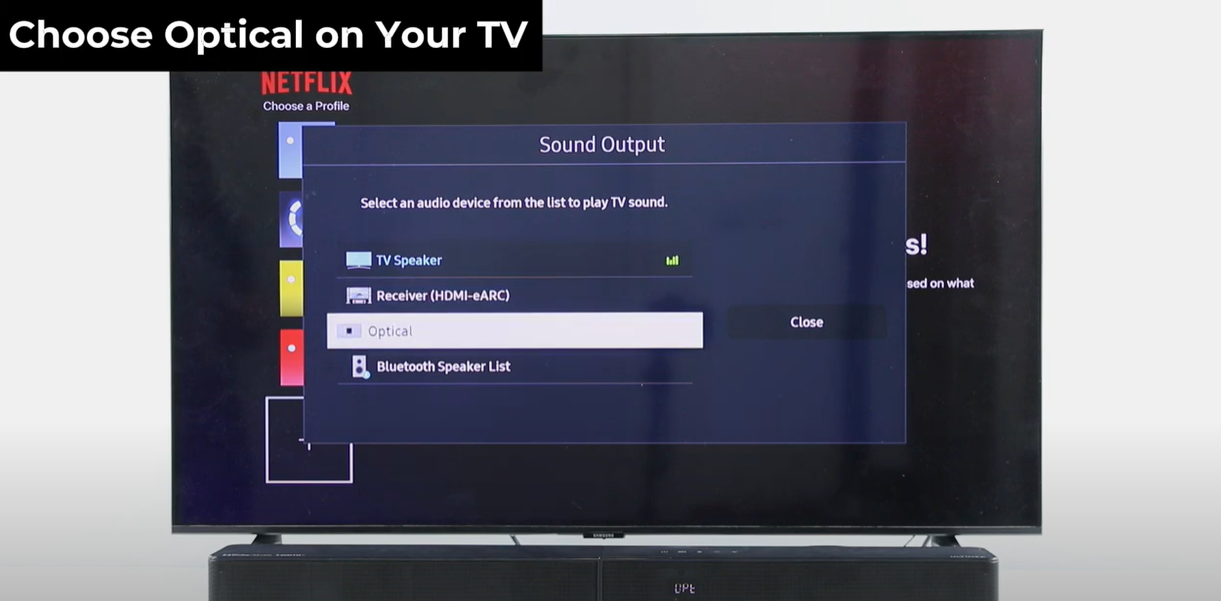

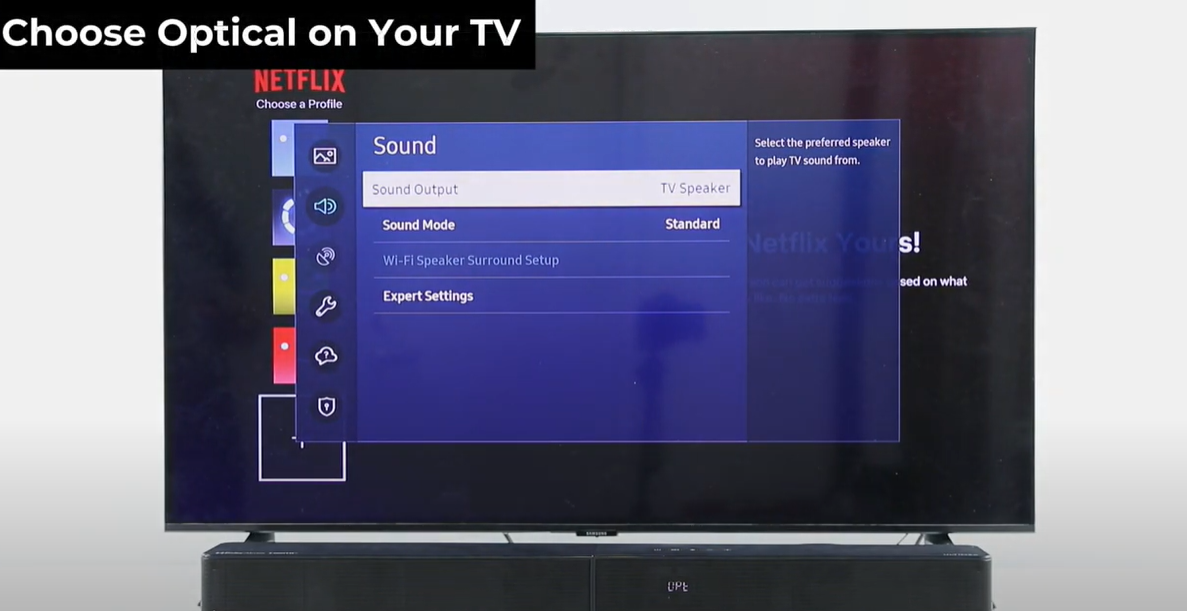

Normally as below: Settings-Sound Output-OPT
and Sound -Expert Settings-Digital Audio Output -PCM

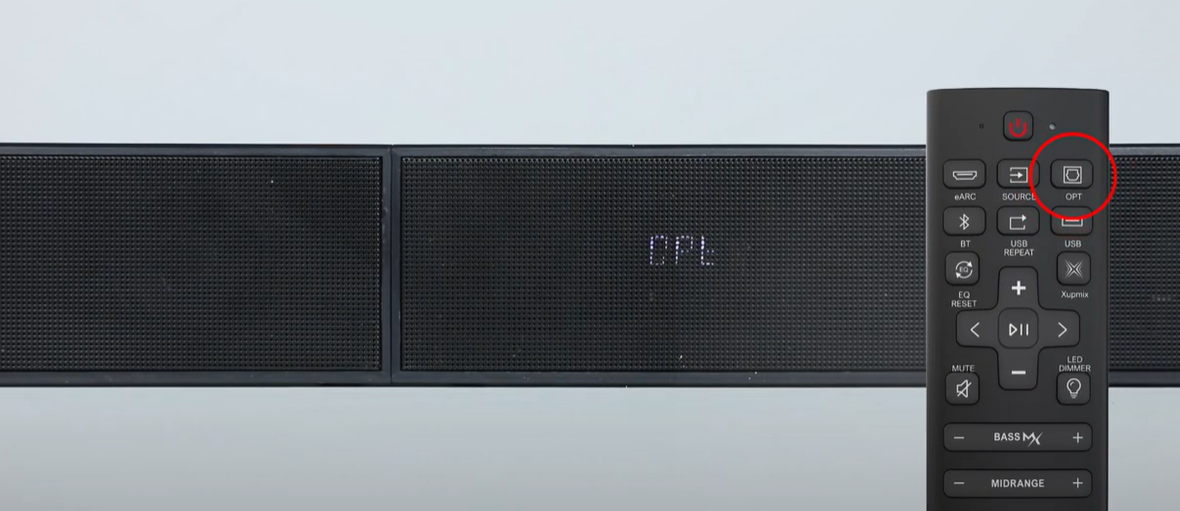

5. Then press the "OPT" button on the remote and check that the LED indicator on the soundbar matches the optical input mode as shown

6. Check if the optical cable's other end has a red light on after connecting the TV port

If there is no red light, we suggest that to try a new optical cable. (the special material inside the optic cable, please do not bend the optic)

Ⅲ. Bluetooth connection:

1. Press the "BT" button on the remote control and check that the LED indicator on the soundbar matches the Bluetooth mode shown in the picture.

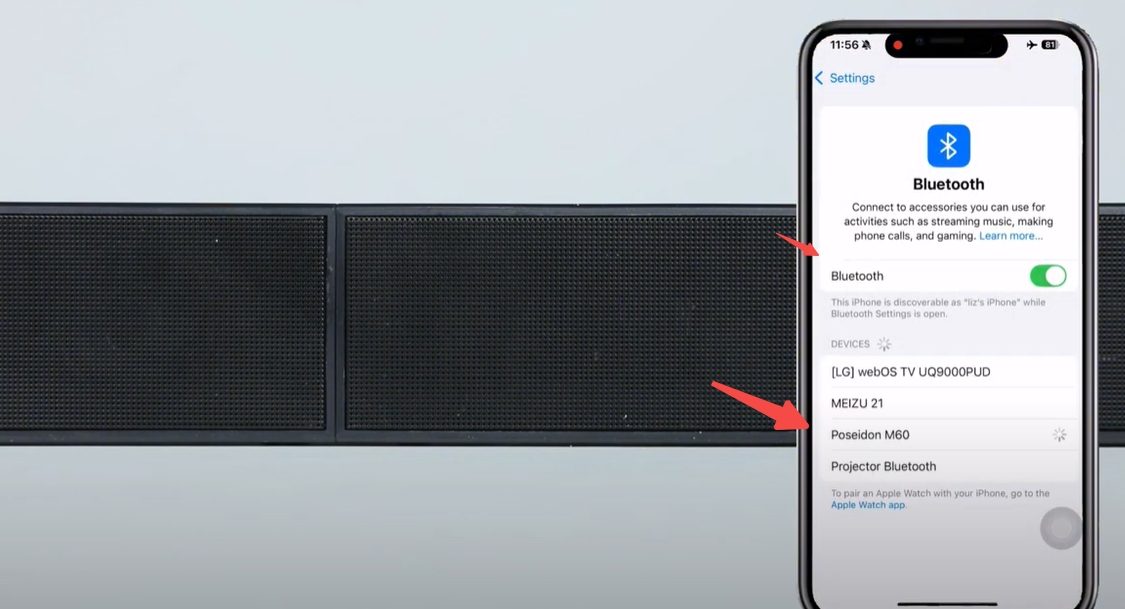

2. Then turn on your phone's Bluetooth search and connect with the device Poseidon M60 Boom.

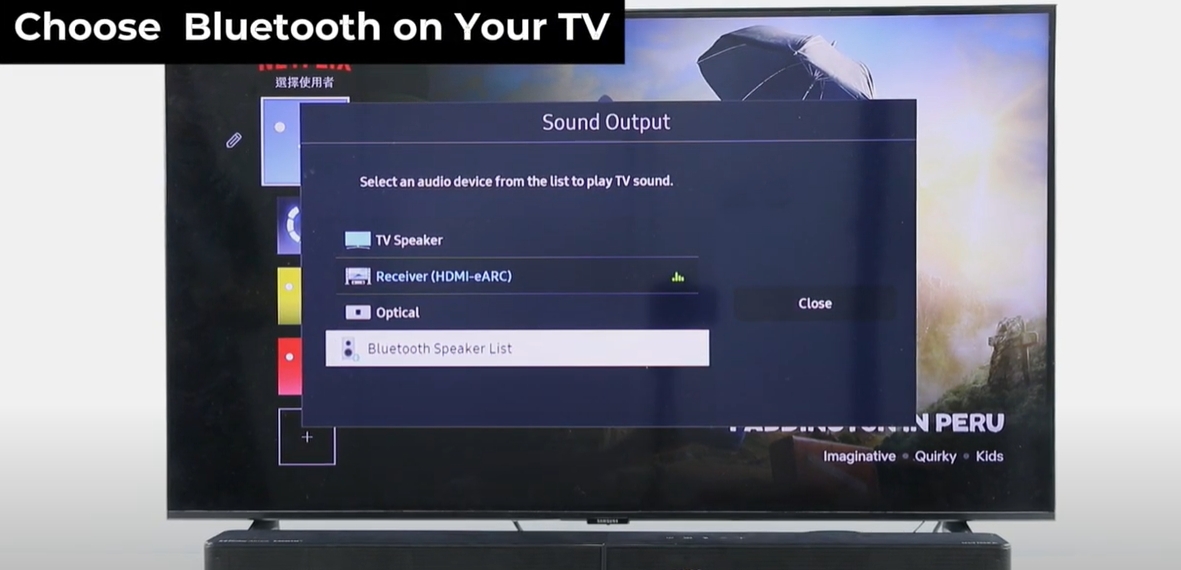

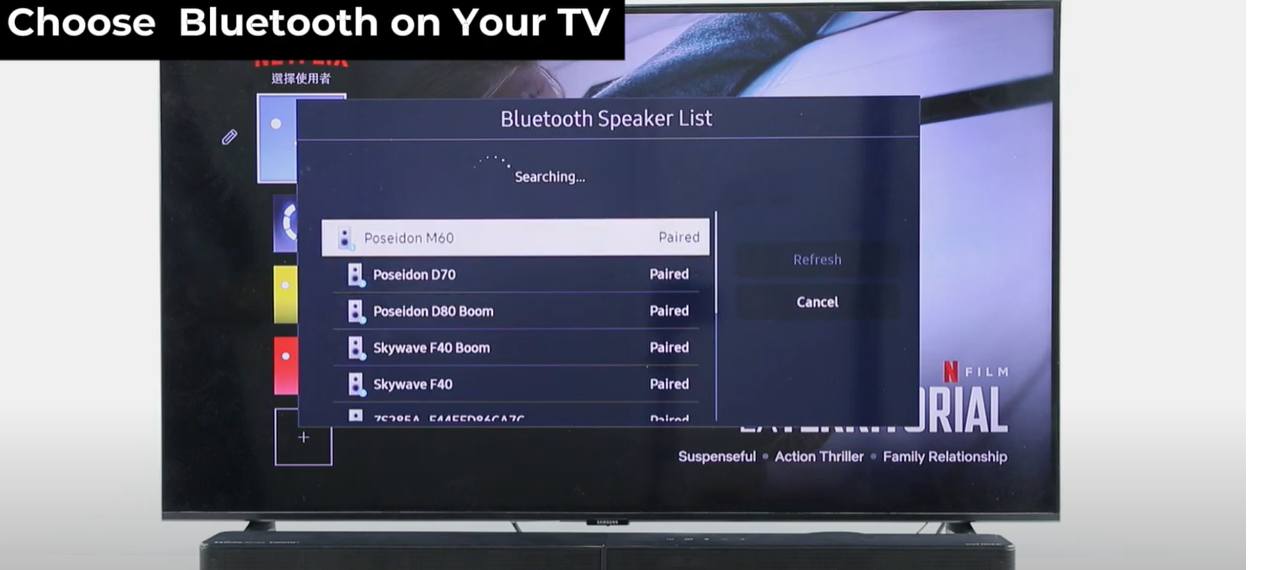

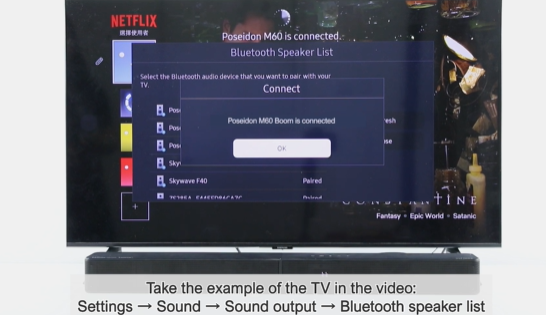

Take the example of the TV in the video: Settings → Sound → Sound output → Bluetooth speaker list.

Other instructions:

1. BT flashing indicates waiting for pairing.

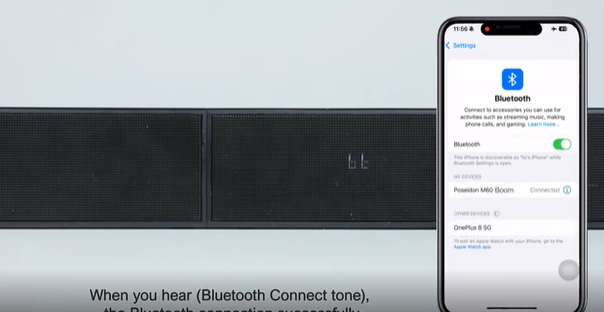

2. A solid (non-blinking) light indicates that the Bluetooth connection has been successfully paired.
3. Press and hold the BT button for 3 seconds to disconnect the current device.

Bluetooth connection problem：
1. Bluetooth version higher than 4.0; otherwise, the Bluetooth signal may not be found.

To ensure connection stability and compatibility, I recommend connecting your phone via Bluetooth instead of your TV.
2. The distance between Bluetooth devices should ideally be within 5m of each other
3. If there is no connection or Bluetooth lag problem, turn off and re-open the Bluetooth device, if still can not solve the problem, please restore the factory settings
