Multiple Connection Methods for Poseidon D50 Soundbar 🔥🔥🔥🔥🔥

Ultimea
Ultimea
  • Updated

Recommend connection: ARC>OPT>AUX>BT>USB

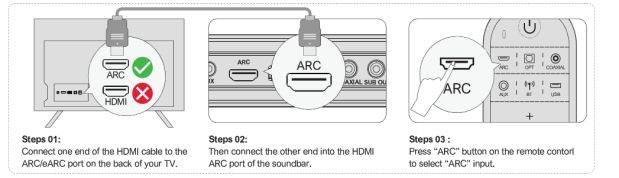

HDMI ARC Connection:

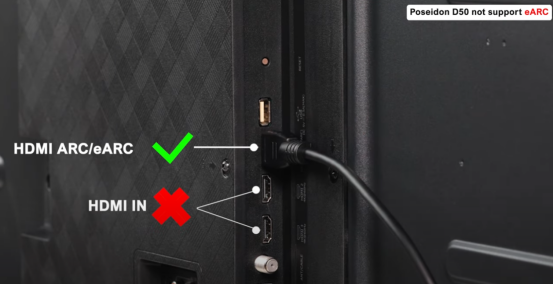

1. Check if the TV and soundbar are connected to the port that is marked "ARC" or"eARC" ("HDMI IN” does not support this).

2. Connect one end of the HDMI cable to the HDMI IN (ARC) port on your TV.

3. Connect the other end to the HDMI (ARC) port on your soundbar.

4. TV Setting in detail:

A: Check if Dolby is turned off.

B: Check whether the PCM setting path is correct.

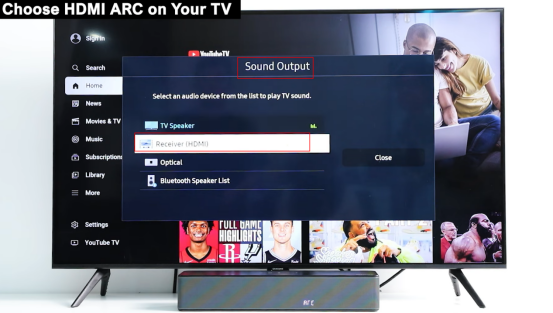

Normally as below: Settings-Sound Output-Receiver HDMI (ARC) and

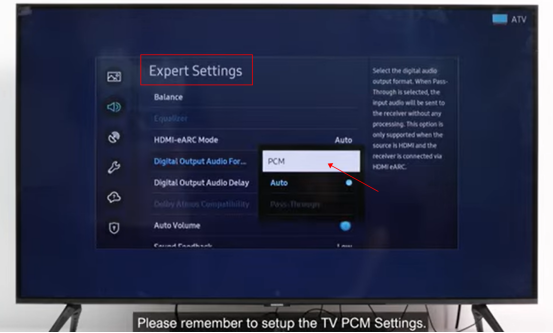

Sound -Expert Settings-Digital Audio Output -PCM

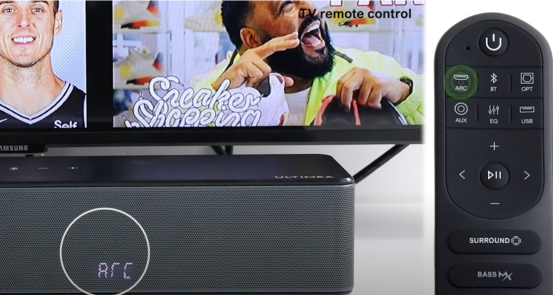

5. Check if the sound bar switches to ARC mode.

6. Check whether the cable is not connected wrongly or loosely

Note: If the connection and settings are correct, but there is no sound, please re-plug the HDMI cable or replace the HDMI cable



Expand knowledge

Connect the TV BOX, DVD, or other game device. The other device needs to be connected to the TV (HDMI IN port) instead of the soundbar via an HDMI Cable.

Such as DVD Connection:

1. Connect one end of an HDMI cable to the HDMI input port on your TV (labeled as HDMI IN), and connect the other end to the HDMI port on your DVD player.

2. Use another HDMI cable to connect one end to the HDMI ARC port on your TV and the other end to the HDMI ARC port on your Soundbar.

Settings:

Step 1: Please set the TV's Audio/Sound output to "PCM."

Step 2: Set the Soundbar's audio output to the "ARC" channel.

Step 3: Configure the DVD player's Audio/Sound output to "Bitstream."

Note: Please switch the TV signal source to the interface number corresponding to the HDMI cable connection port

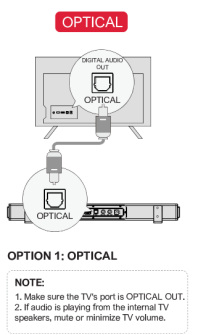

Optical Connection:

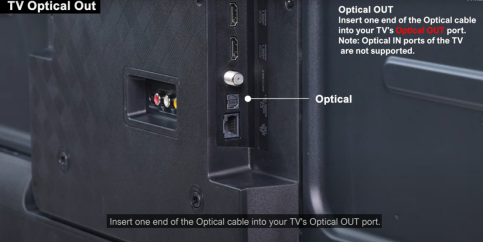

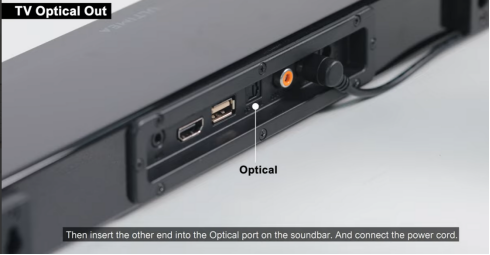

1. Connect an optical audio cable from the TV's Optical Digital Audio Out port to the Optical in port on your soundbar.

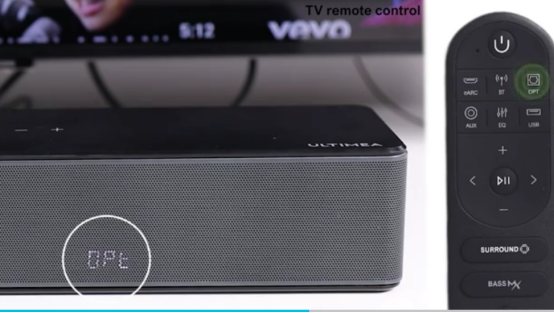

2. Check if the sound bar switches to OPT mode.

3. Check whether the TV setting path is correct.

Normally as below: Settings-Sound Output-OPT and

Sound -Expert Settings-Digital Audio Output -PCM

4. Check if the optical cable other end has a red light on after connecting the TV port

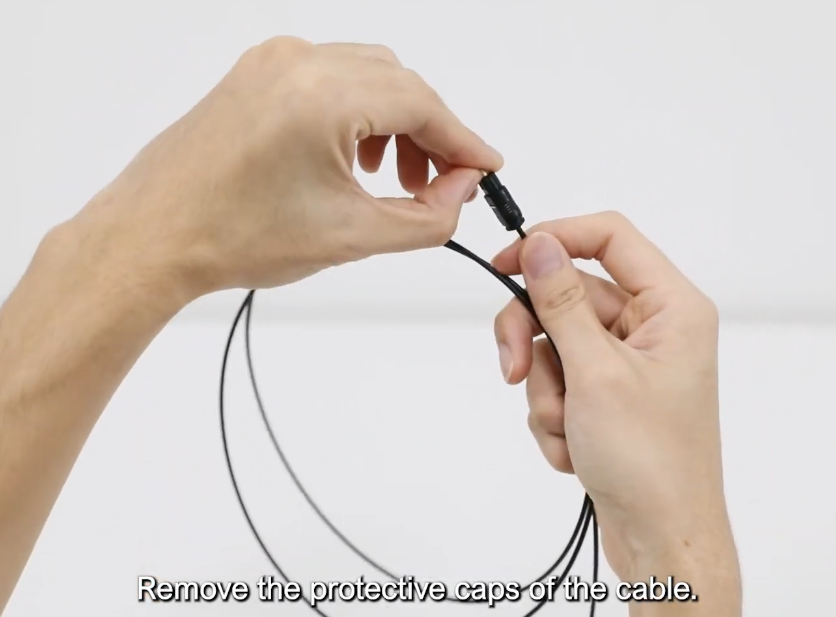

if there is no red light, we suggest that to try a new optical cable. (the special material inside the optic cable, please do not bend the optic)

AUX Connection:

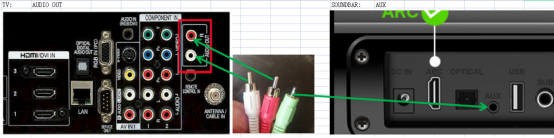

3.5mm-RCA Audio cable connection:
1. Connect an Audio cable from the Audio Out port on the TV to the AUX port on the soundbar.
A. The connecting port of the TV is AUDIO OUT, not AUDIO IN
B. Make sure that the AUX cable is a 3.5 mm cord.

C. Make sure the AUX cable is not damaged

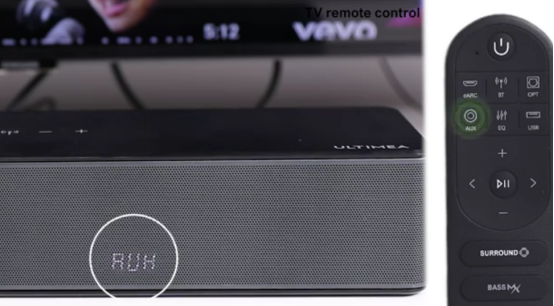

2. Switch the Soundbar output is AUX mode.

Note: if you want to switch the output to another mode when AUX is connected, you need to unplug both ends of the AUX cable from the devices before making the switch.

Bluetooth connection

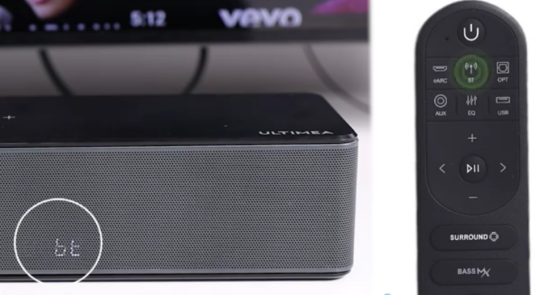

1. Soundbar switches to BT mode via the remote control

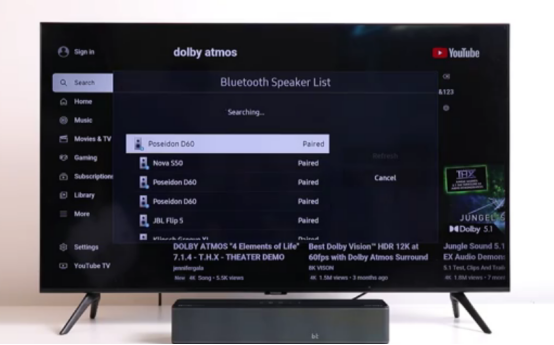

2. Enter in TV -Sound Output-Bluetooth Speaker list to turn on Bluetooth and connect the soundbar device “Poseidon D50”

Bluetooth connection is successful when hearing "connected".

3. Press and hold the BT button for 3 seconds to disconnect the current device(BT flashing indicates waiting for pairing)

Bluetooth connection problem:

1. Bluetooth version higher than 4.0, Otherwise the Bluetooth signal may not be found

2. The distance between Bluetooth devices should ideally be within 5m of each other

3. If there is no connection or Bluetooth lag problem, turn off and re-open the Bluetooth device, if still can not solve the problem, please restore the factory settings

USB connection

The USB port is used to connect the USB flash drive(up to 64GB), it is unable to connect your devices with the USB cable directly.

Only supports USB format: FAT; FAT32

When you plug your USB flash drive with music in it, the soundbar will enter USB mode and play the music automatically.
