How to Connect Additional Devices, Such as a TV Box or Fire Stick?

If you'd like to connect additional devices, such as a TV Box or Fire TV Stick，please refer to the steps below.

1. Connect the HDMI cable to the TV eARC/ARC/HDMI port.
2. Connect the external device HDMI OUT to the soundbar HDMI IN.

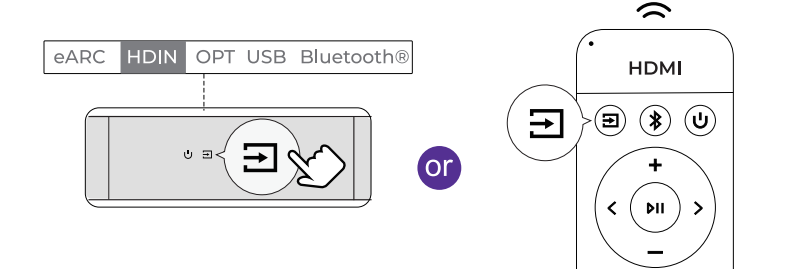

3. Press the "Source" button on the soundbar or remote ccontrol to select the "HDIN" input.

Connecting External Devices: TV Box, DVD Player, Game Console, etc.
Example: DVD Connection

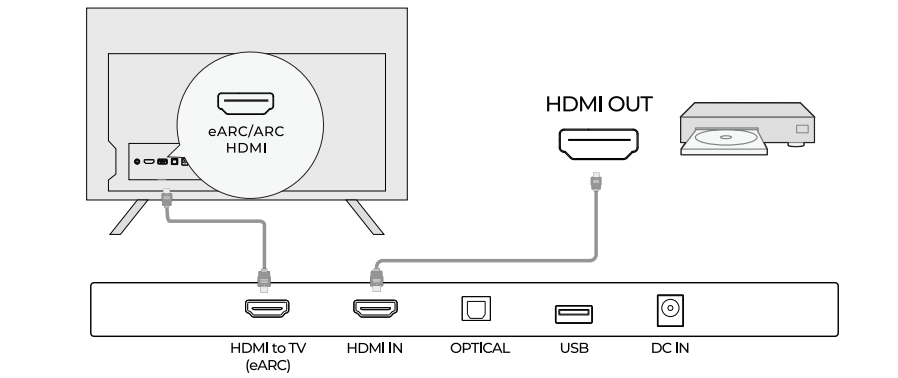

Step 1: Connect the HDMI cable from the HDMI OUT port onthe DVD player (or other external device) to the HDMI IN port on the Soundbar.
Step 2: Connect another HDMI cable from the HDMI OUT (eARC) port on the Soundbar to the HDMI
eARC/ARC port on the TV.
Note: Your TV's HDMI port must support eARC to transmit Dolby Atmos audio to the Soundbar.
Step 3: Press the "Source" button on the Soundbar or remoote control to switch to the HDMI IN channel.

Settings
Step 1: Set the Soundbar's input mode to "HDMI IN".
Step 2: Set the DVD player's audio output format to "Bitstreeam" or "Auto"

Iternative Connection for External Devices
Example: Chromecast / Fire TV Stick
-Plug the Chromecast or Fire TV Stick into one of the HDMIIN ports on your TV.
-Use an HDMI cable to connect your TV's HDMI eARC/ARC port to the Soundbar's HDMI OUT (EARC) port.
-Set your TV's audio output to "External Speakers" or"HDMI (ARC/EARC)".
-Select "TV/eARC" as the input source on the Soundbar.
-On your TV, switch the input/source to the HDMI port where the Chromecast or Fire TV Stick is connected.

If the issue persists, please feel free to contact Ultimea Customer Support at support@ultimea.com — we’ll assist you as quickly as possible.
