There are kinds of connection methods: OPT>AUX>Bluetooth>USB
Note:
Power on: Green light flashes for 3 seconds, then displays the
indicator light of the current channel.
Power off: Green light flashes for 3 seconds, then red light stays on
OPT channel: Shows purple light.
Bluetooth channel: Shows blue light.
AUX channel: Shows green light.
Insert USB flash drive, select USB channel: Shows orange light
No USB flash drive inserted, select USB channel: Orange light flashes.
OTA upgrade: Red light flashes.
Optical Connection:
Connect an optical audio cable from the TV's Optical Digital Audio out port to the OPTICAL IN port on your soundbar.
When you connect only with an optical audio cable, such as the power function and volume control function with the TV remote, won't be possible.
Setting in detail:
1. Check whether the PCM setting path is correct.
Normally as below: Settings-Sound-Digital Audio Output -PCM.
For more examples of various TV brands, please refer to the attached picture
2. Check if the sound bar switches to OPT mode.

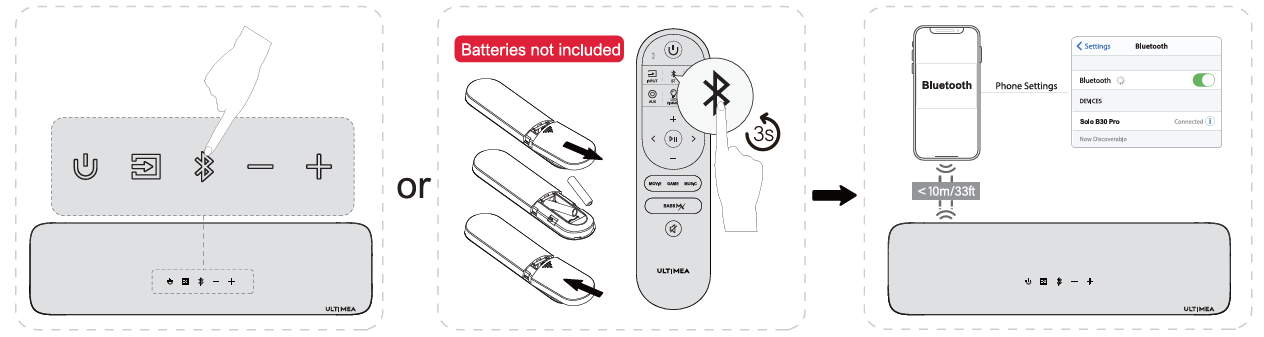

Bluetooth connection
1. Press the" " button on the soundbar or remote control to enter Bluetooth pairing mode.
2. Open your phone's Bluetooth settings, find and select "Solo B30 Pro" to connect the soundbar.
Note: If it's already in Bluetooth mode and connected, press and hold the "" button for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone/PC/TV.

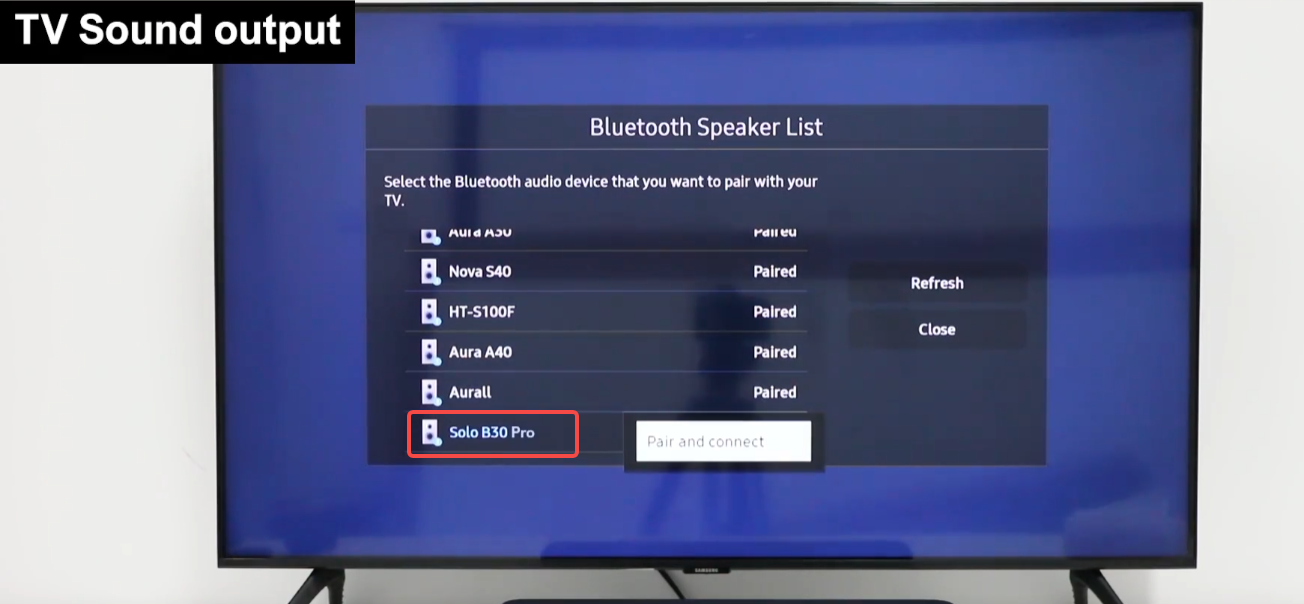

Here are some steps on how to connect the TV's Bluetooth connection.
1. Find the following settings on your TV: Settings → Sound output→Bluetooth
2. select the name 'Ultimea Sele B30 Pro' to connect the soundbar.
3. When you see the indicator light turn solid blue, it means the Bluetooth connection is successful.
AUX Connection:
3.5mm-3.5mm Audio cable connection:Connect an analog audio cable from the Audio Out port on the TV to the AUX port on the soundbar.
A. The connecting port of the TV is AUDIO OUT, not AUDIO IN
B. Make sure that the AUX cable is a 3.5 mm cord.
C. Make sure the TV output path is AUDIO/SOUND output and the Soundbar output is AUX mode.
USB connection
The USB port is used to connect the USB flash drive(up to 128GB), it is unable to connect your devices with the USB cable directly. When you plug your USB flash drive with music in it, the soundbar will enter USB mode and play the music automatically.
