Recommend connection: OPT＞AUX＞BT>USB
Note:
Channel Color: Purple: OPTICAL Blue: Bluetooth Green: AUX Orange: USB
Other Status:
Green Flashing for 3 times: Power On
Red Flashing for 3 times: Power Off
Purple Flashing: OTA Upgrading
Orange Flashing: No USB
Optical Connection:
Note: Remove the protective caps of the OPT cable.
Please note that the protective caps at both ends of the OPT cable need to be removed carefully. These caps are usually in place to protect the connectors during storage and transportation. Once you are ready to use the cable, make sure to remove the caps to ensure a proper connection. Failure to remove the caps may result in a faulty connection or no signal transmission at all.

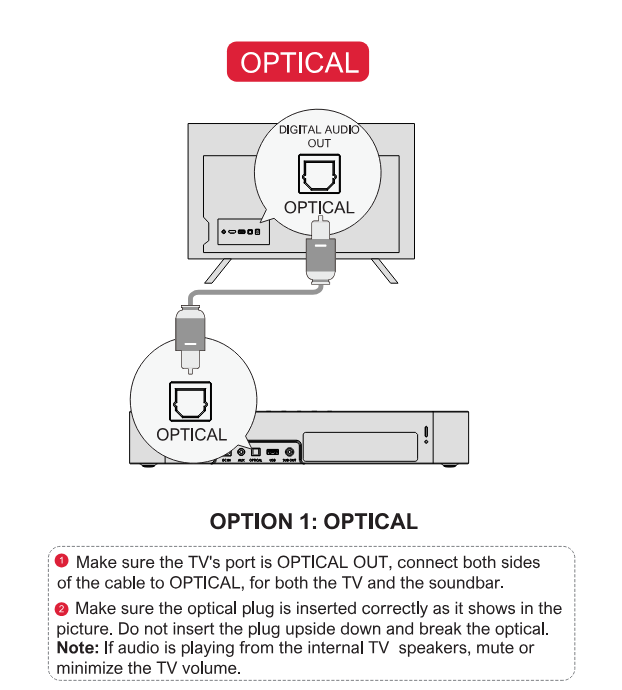

1. Connect an optical audio cable from the TV's Optical Digital Audio out port to the OPTICAL IN port on your soundbar.
When you connect only with an optical audio cable, such as the power function and volume control function with the TV remote, won't be possible.
Setting in detail:
2. Check whether the PCM setting path is correct.

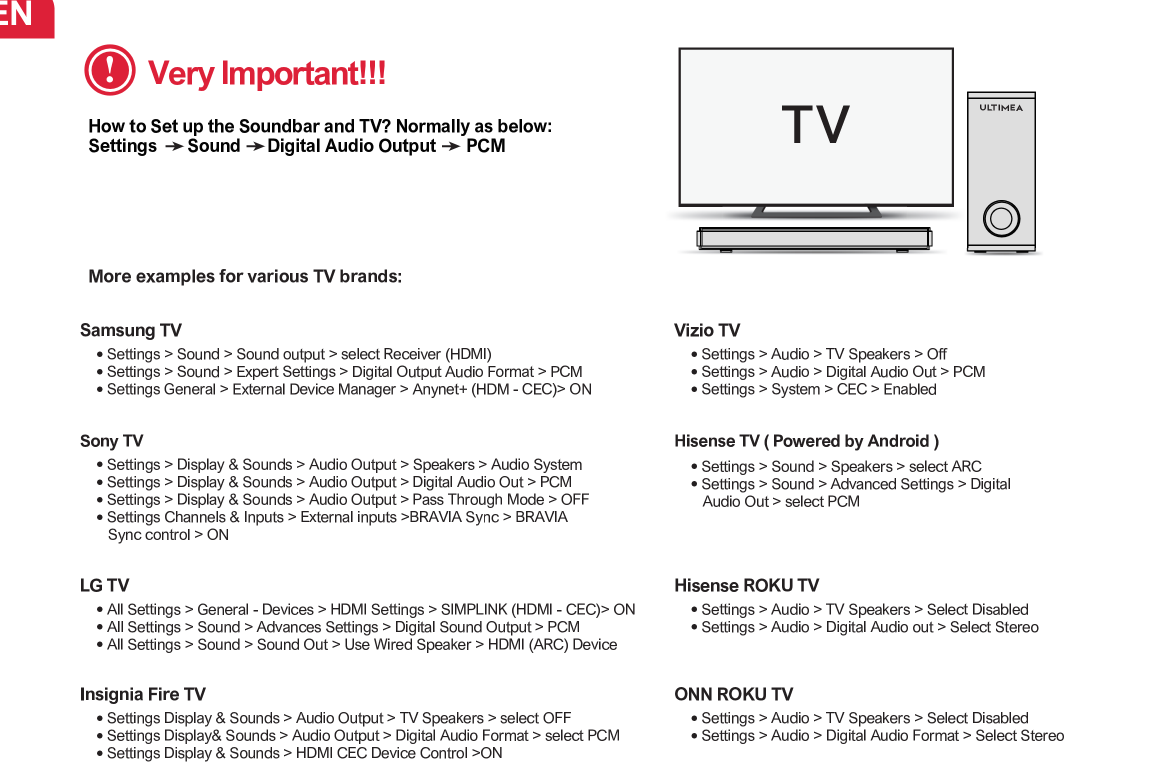

Normally as below: Settings-Sound-Digital Audio Output -PCM.

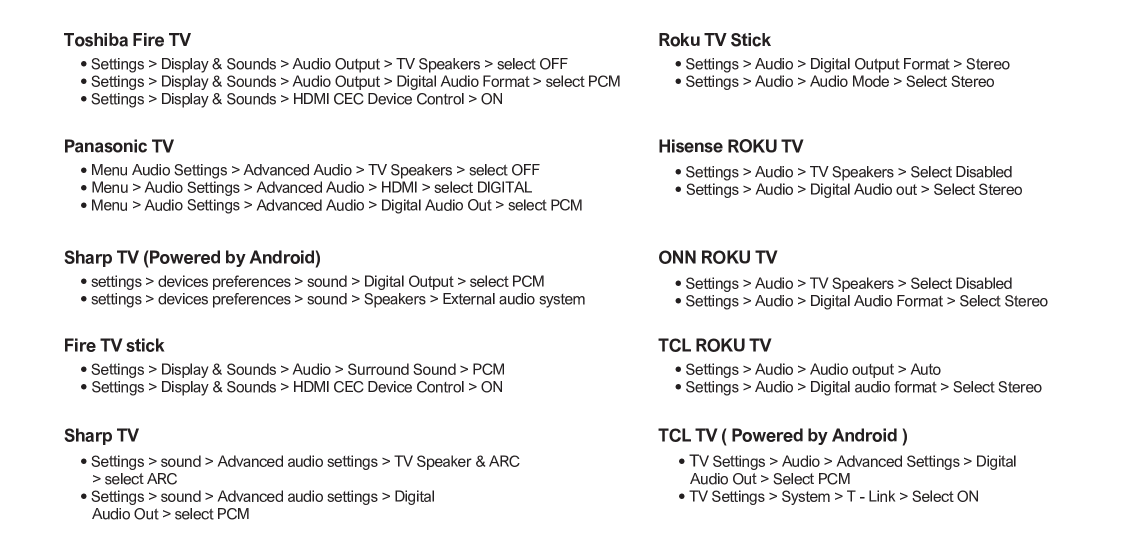

For more examples of various TV brands, please refer to the attached picture
3. Check if the sound bar switches to OPT mode.
Bluetooth connection

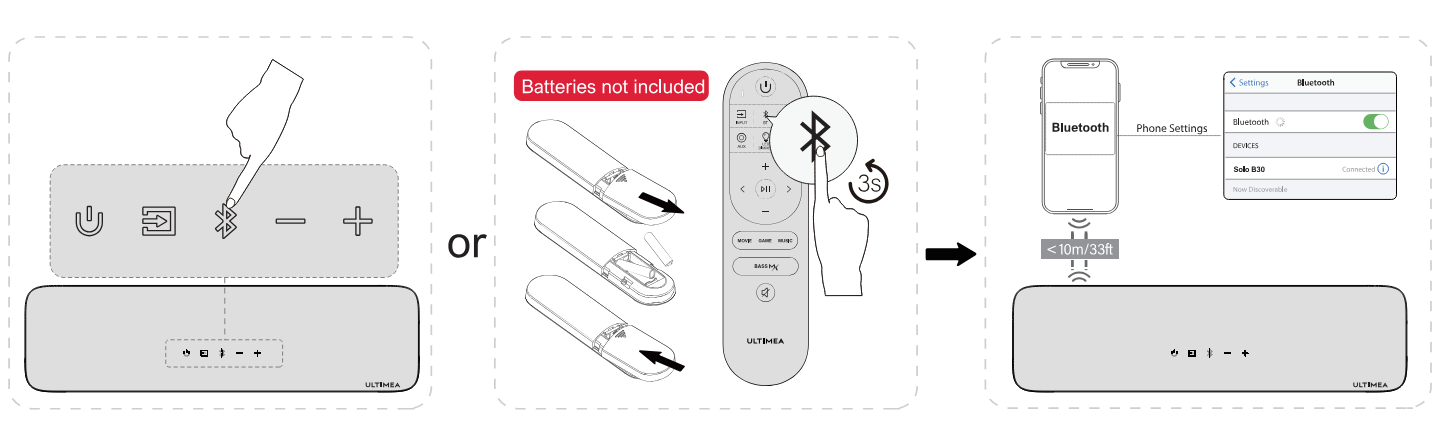

1. Press the" " button on the soundbar or remote control to enter Bluetooth pairing mode.
2. Open your phone's Bluetooth settings, find and select "Solo B30" to connect the soundbar.
Note: If it's already in Bluetooth mode and connected, press and hold the "" button for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone/PC/TV.
AUX Connection:

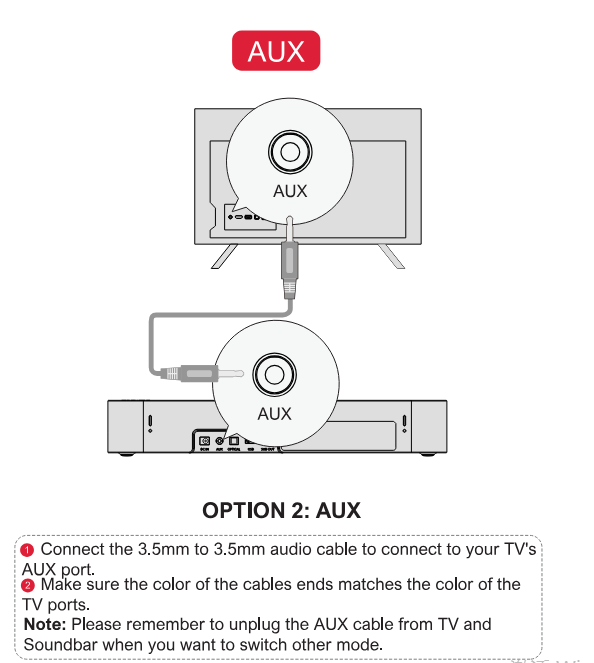

3.5mm-3.5mm Audio cable connection:Connect an analog audio cable from the Audio Out port on the TV to the AUX port on the soundbar.

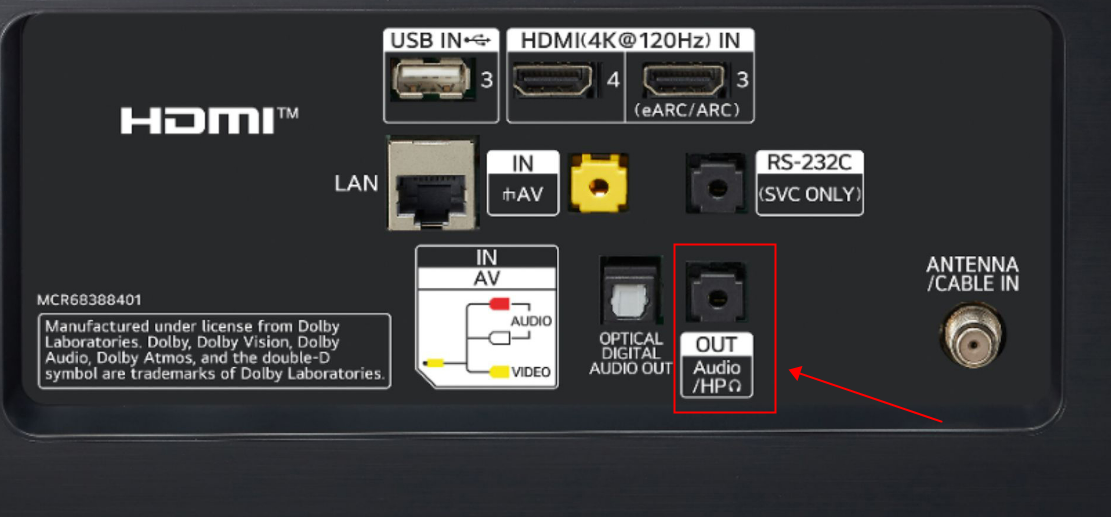

A. The connecting port of the TV is AUDIO OUT, not AUDIO IN
B. Make sure that the AUX cable is a 3.5 mm cord.
C. Make sure the TV output path is AUDIO/SOUND output and the Soundbar output is AUX mode.
USB connection
The USB port is used to connect the USB flash drive(up to 128GB), it is unable to connect your devices with the USB cable directly. When you plug your USB flash drive with music in it, the soundbar will enter USB mode and play the music automatically.
