How is the Poseidon E40 Keystone Correction?🔥🔥🔥🔥

Ultimea
Ultimea
  • Updated

The Poseidon E40 supports Auto keystone, Vertical correction, Horizontal correction, and Remote Corner Correction.

Auto Keystone:

Press the button to go to the projector home menu, [Settings]->[Projection Settings]->[Keystone Settings]->[Turn on Auto Keystone]
When the projector image is distorted, it will perform auto keystone correction to restore the image to a rectangle. If you find the auto keystone correction does not work as well as before, follow the instructions below to optimize it.

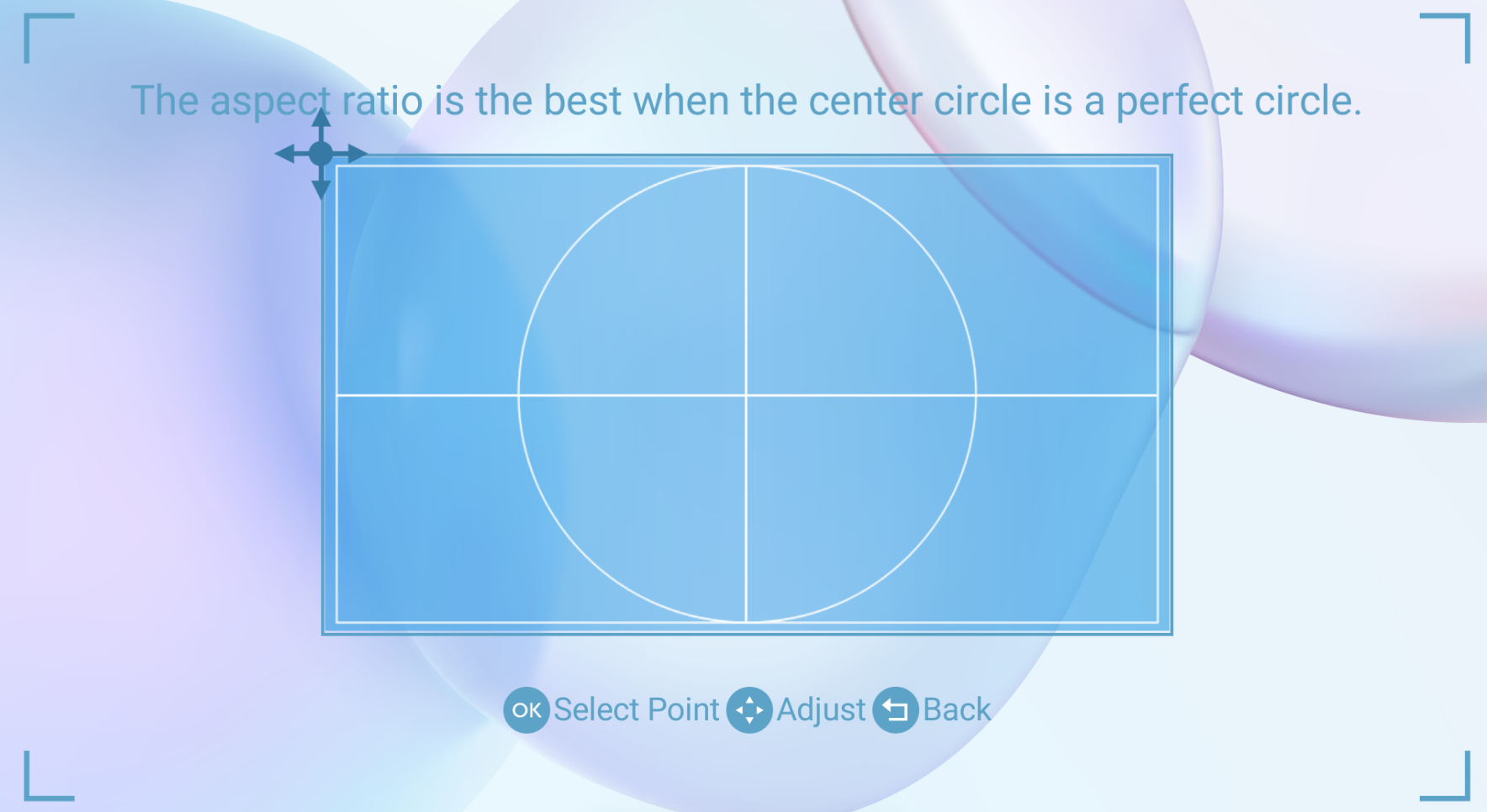

Select [Calibration Settings] and adjust the projector for the correct image.



Vertical / Horizontal correction:
1. When fixing your projector in a place use Vertical / Horizontal correction.
Press the button to go to the projector home menu, and select [Settings] -> [Projection Settings] -> [Keystone Settings]
2. Please turn off Auto keystone correction and go back to the previous menu.

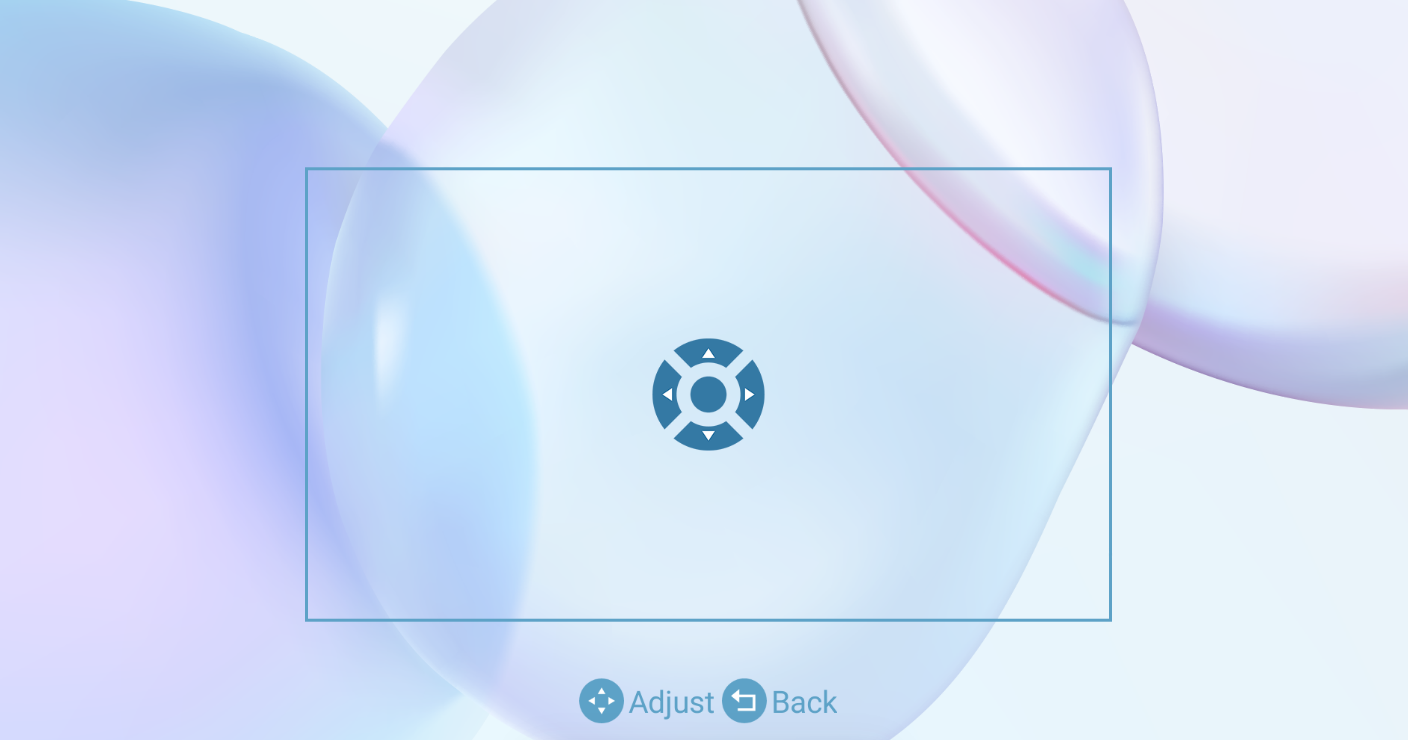

3. Select [Projection Settings]->[Vertical Correction] / [Horizontal Correction], and press the left or right button on the remote control to adjust.



Manual Corner Correction:
If the projected image is stretched or distorted along both axes due to the angle of the projection, press the button to go to the projector home menu, and select [Settings]->[Projection Settings]->[Corner Correction], choose the corner you want and press left or right button on the remote control to adjust.



Keystone Correction Reset:

To restore the default settings, press the button to go to projection settings.

Select [Settings] -> [Projection Settings] -> [Keystone Correction Reset] and press OK.
