How Do I Connect External Devices to the Skywave X60 Soundbar?🔥🔥🔥🔥

Connecting External Devices: TV Box, DVD Player, Amazon Fire TV Cube, Game Console, etc.

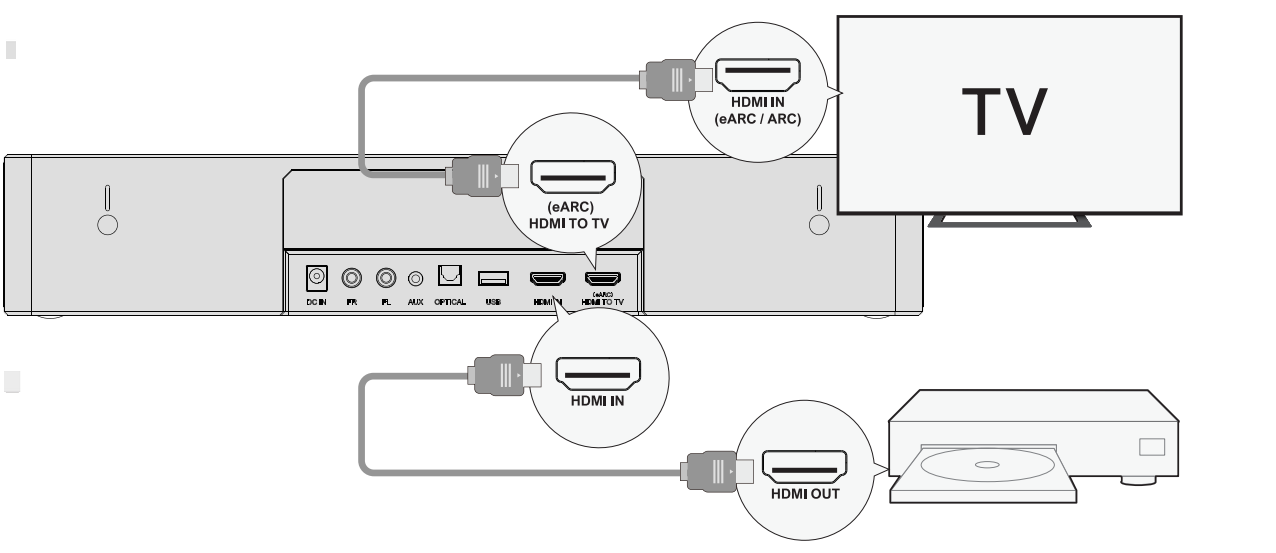

Example –Such as DVD Connection:
Step 1: Connect the HDMI Cable to the HDMI OUT (eARC) port on the Soundbar and the other end of the eARC / ARC port on the TV.

Note: Your TV HDMI needs to support eARC to transmit the Dolby Atmos audio format to your Soundbar.

Step 2: Connect the HDMI cable to the HDMI OUT port on the other device (Such as a DVD or game console) and the other end to the HDMI IN port on the Soundbar.

Step 3: Press the" " button on the Soundbar or Remote Control to switch to the HDMI IN channel.

Settings:
Step 1: Please set the TV's Audio/Sound output to "AUTO/Passthrough".
Step 2: Set the Soundbar's input mode to the "HDMI IN".
Step 3: Configure the DVD player's Audio/Sound output to "Bitstream".

Other device Connection (TV):


1. Chromecast/Fire TV stick  → TV → Soundbar

- Plug the Chromecast/Fire TV stick into one of your TV’s HDMI IN ports.
- Use an HDMI cable to connect your TV’s HDMI ARC/eARC port to the soundbar’s HDMI OUT (eARC) port.
- Set your TV’s audio output to “External Speakers” or “HDMI ARC.”
- Change your TV’s source to the HDMI port that your Fire TV Cube is plugged into.
- Switch the soundbar to eARC mode.

2. Chromecast/Fire TV stick → Soundbar → TV
- Connect the Chromecast/Fire TV stick to the soundbar’s HDMI IN port.
- Use another HDMI cable to connect the soundbar’s HDMI OUT (eARC) port to the TV’s HDMI ARC/eARC port.
-Set your TV’s audio output to “External Speakers” or “HDMI ARC.”
- Set the soundbar to HDMI IN mode.


Other device Connection (Projector):

Streaming box → ULTIMEA  Skywave X60  → ULTIMEA  Apollo P60 Projector
Steps:

1. Connect the HDMI output of the streaming box into the HDMI IN port on the Skywave X60.

2. Use an HDMI cable from the Skywave X60’s HDMI eARC port to the Apollo P60’s HDMI (ARC) input.

3. On the Skywave X60, select the input mode corresponding to the HDMI IN port you used (i.e., the one connected to the streaming box).

4. On the Apollo P60, select the same HDMI source to make sure the video comes via the streaming box through the soundbar.

5. On the streaming box, set the audio output mode to “Manual” or “None (PCM)” so it outputs standard stereo or format‑free audio.

6. Power on the streaming box, then the Skywave X60, and then the Apollo P60. Play content such as Netflix or YouTube and verify that both the picture and audio output are correct and synchronized.
