Multiple Connection Methods for the Aura A50 Pro Soundbar🔥🔥🔥🔥

Ultimea Support
Ultimea Support
  • Updated

There are kinds of connection methods:
eARC/ARC > OPT > AUX > Bluetooth > USB

HDMI eARC/ARC Connection：

1. Check if the TV and sound bar is connected to the port that is marked "ARC" or"eARC" ("HDMI IN” does not support this).

2. Connect one end of the HDMI cable to the HDMI (ARC/eARC) port on your TV.

3. Connect the other end to the HDMI (eARC) port on your soundbar.

4. Check whether the TV setting path is correct.
Normally as below: Settings-Sound Output-Receiver HDMI (eARC) and

Sound -Expert Settings-Digital Audio Output -Auto/Pass Through

1)For general audio output, select "Auto" (Preference) to allow the TV to automatically determine the best audio format for your content.

2) If you're dealing with Atmos audio content (such as Dolby Atmos), choose the "Pass through" option.

3) The Dolby Atmos is ON.

5. Check if the Soundbar switches to eARC mode.

6. Check whether the cable is not connected wrongly or loosely after completed

Note： If the connection and settings are correct, but there is no sound, please re-plug the HDMI cable or replace the HDMI cable.



Optical Connection:

Note: Remove the protective caps of the OPT cable.

Please note that the protective caps at both ends of the OPT cable need to be removed carefully. These caps are usually in place to protect the connectors during storage and transportation. Once you are ready to use the cable, make sure to remove the caps to ensure a proper connection. Failure to remove the caps may result in a faulty connection or no signal transmission at all.

1. Connect an optical audio cable from the TV's Optical Digital Audio out port to the OPTICAL IN port on your soundbar.

When you connect only with an optical audio cable, such as the power function and volume control function with the TV remote, won't be possible.

3. Check if the sound bar switches to OPT mode.

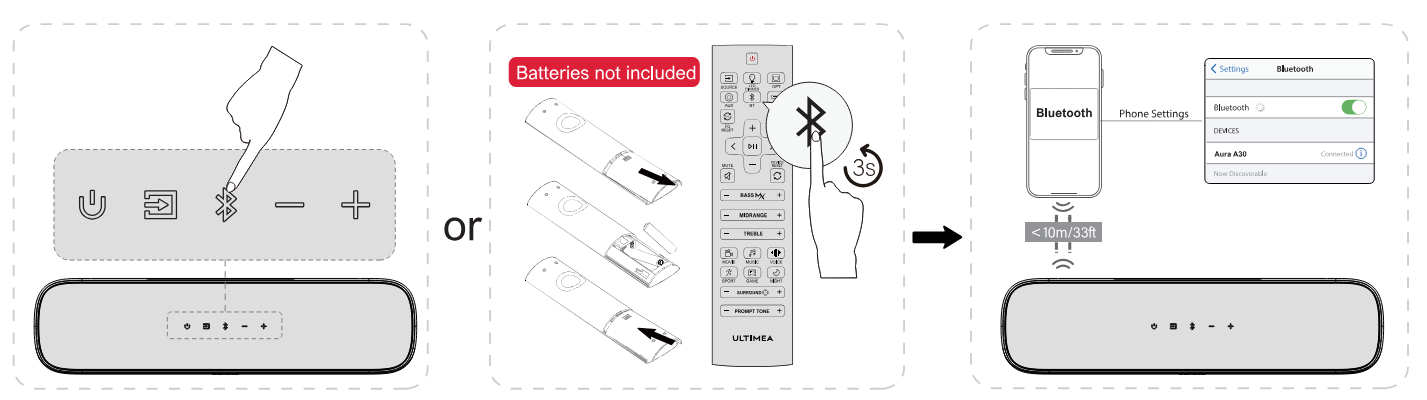

Bluetooth connection
1. Press the" " button on the soundbar or remote control to enter Bluetooth pairing mode.
2. Open your phone's Bluetooth settings, find and select "Aura A50 Pro" to connect the soundbar.
Note: If it's already in Bluetooth mode and connected, press and hold the "" button for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone/PC/TV.
AUX Connection:
3.5mm-3.5mm Audio cable connection:
Connect an analog audio cable from the Audio Out port on the TV to the AUX port on the soundbar.
A. The connecting port of the TV is AUDIO OUT, not AUDIO IN
B. Make sure that the AUX cable is a 3.5 mm cord.
C. Make sure the TV output path is AUDIO/SOUND output and the Soundbar output is AUX mode.
D: Make sure the AUX cable is not damaged

USB connection

The USB port is used to connect the USB flash drive(up to 128GB), it is unable to connect your devices with the USB cable directly. When you plug your USB flash drive with music in it, the soundbar will enter USB mode and play the music automatically.

Note: The Aura A50 Pro USB port supports external USB device reading and playback, and only supports playing MP3 audio.
