Apollo P60 installation methods🔥

Note:
During the installation process, please do not operate with electricity to avoid electric shock hazards and projector circuit failure.
Please keep a gap of at least 30 cm from the wall. Do not cover or block the projector's vents with any objects. Make sure that the projector has enough ventilation to ensure the projector's. performance and reliability.
If you have a projector screen that needs to be mounted on a ceiling, the projector cannot be higher than the upper edge of the screen, otherwise, it will affect the image effect.

Horizontal placement:
1. Adjust the image projected on the screen.
2. Check the horizontal and vertical settings of the screen.
3. Manual height adjustment:
Please adjust the screen with automatic keystone correction or by purchasing a separate stand.

Ceiling installation:
1. Please purchase a universal projector ceiling mount.
2. Screw hole size: 1/4 M6*11mm.
Screws need to be purchased by yourself for installing the ceiling bracket.

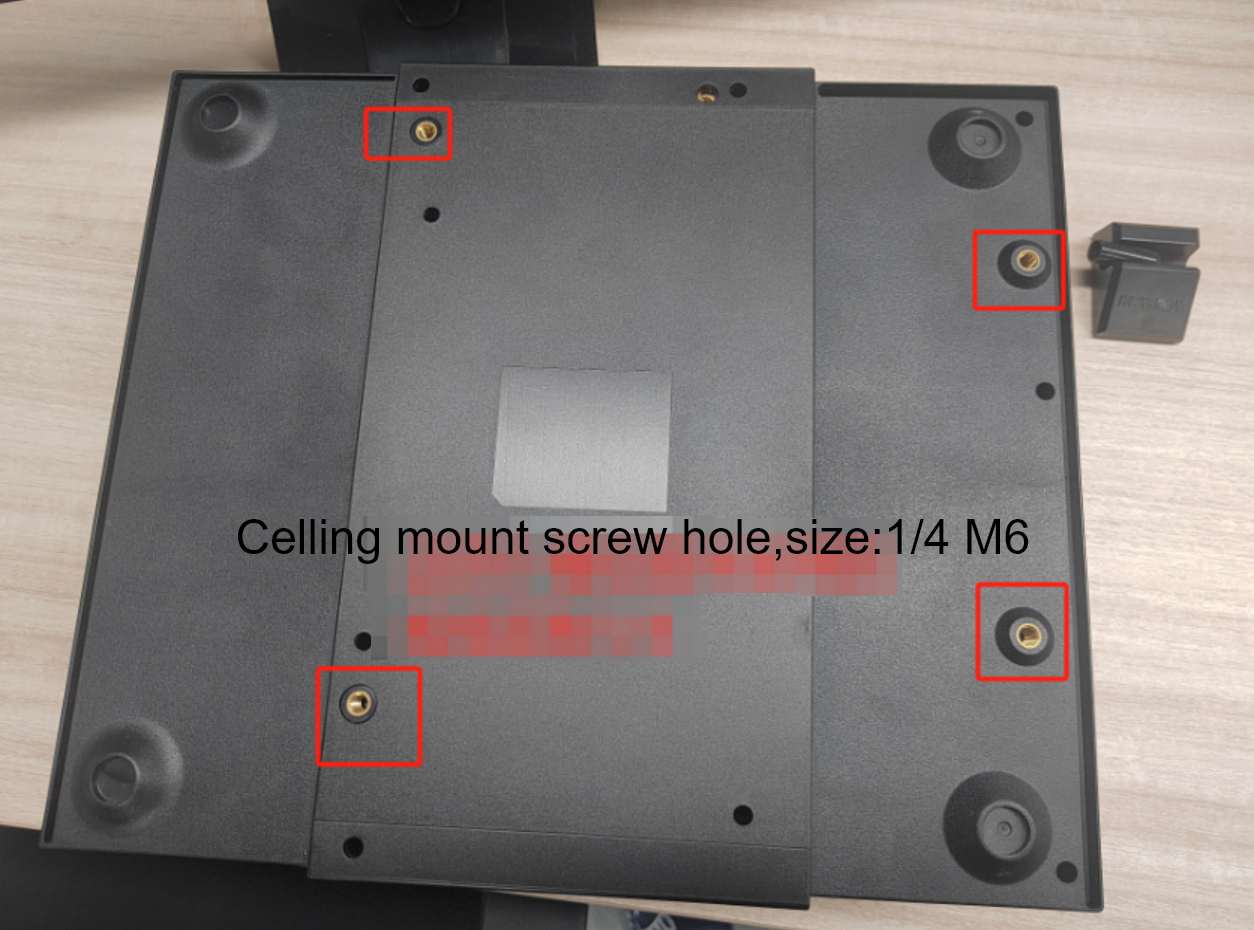

3. Tighten the bracket screws into the holes (the circled holes in the picture can be used for installation)

Adjust the projection mode:
Select [Settings] -> [Projection Settings] -> [Projection Mode], select Desktop Front Projection / Desktop Rear Projection / Ceiling Front Projection / Ceiling Rear Projection.
