Poseidon D60 Wireless Subwoofer and Wired 2*Surround Speakers Connection ?🔥🔥🔥🔥

  • Updated

Tips: If there is no sound or abnormal sound after connecting and pairing the subwoofer correctly, you can try to re-plug the subwoofer power cable and restart it.


1. Use the 6m RCA-RCA cables to connect the subwoofer and surround speakers, please pay attention to matching the same color interfaces on the surround speakers with the corresponding ones on the subwoofer and place the surround speakers accordingly.

2. Use a power cable to connect your subwoofer and power port.


The subwoofer has been paired with the soundbar by ULTIMEA.

However, you may need to re-pair the soundbar and subwoofer if there is no sound coming from the subwoofer.

It is recommended that the remote control be paired close to the LED display of the main sound bar and that the subwoofer be placed next to the main soundbar.

Subwoofer Pairing Method:

1. Both the main soundbar and the subwoofer connect the power and turn on the soundbar.

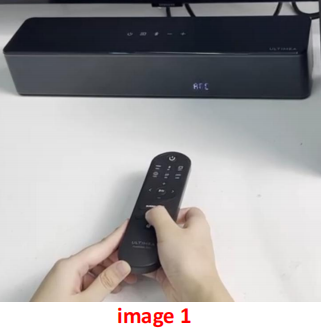

2. Position the remote control approximately 1 foot away from the Soundbar, pointing it towards the LED indicator, as shown in image 1.

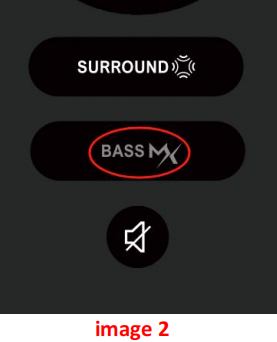

3. Long-press the button ”  ”on the remote control for 5 seconds, until the main soundbar displays a flashing "SUB, " as shown in images 2 and 3.

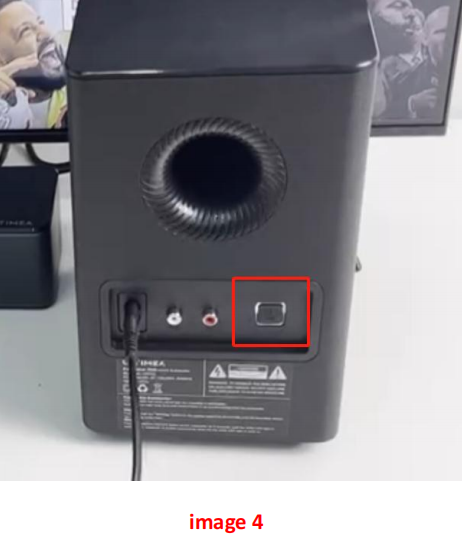

4. Long-press the "ON/OFF" button on the subwoofer for 5 seconds until the white indicator light starts flashing rapidly, as shown in image 4.

5. Within approximately 5 seconds, the subwoofer's indicator light will be not flashing and always be on, indicating a successful pairing.

Note: If you have the problem that the subwoofer cannot be paired after completing the software upgrade, it is because the software versions of the subwoofer and the main soundbar are different
Please reinstall the Soundbar to the factory version. Then try pairing again.
Please ensure that the main soundbar and the subwoofer remain connected before upgrading.


Subwoofer abnormal working problem:

1. It is recommended to place the subwoofer on the ground for use.

2. Please do not use external objects to block the soundbar and subwoofer horn

3. To increase the subwoofer effect:

A: Turn up the volume

B: Press BASS: BS 1 or SR 1 (Bass Level:-1; 0; 1)

C: Try it out with a heavy bass song and turn the sound to the maximum. then put your hand close to the subwoofer.  Check for vibration.



Note: For a better listening experience, we suggest the soundbar and surround speakers should be placed at the sofa sides or near the ear level.



If this issue persists, please contact Ultimea customer support at support@ultimea.com for further assistance. Please make sure to mention that you have tried the steps in the FAQ so that our agents do not ask you to repeat these steps.
